100Gb QSFP28 MPO SR4 100m XCVR
100Gb QSFP28 MPO SR4 100m XCVR
Product Overview

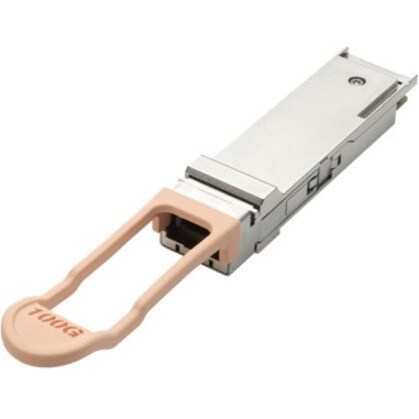

HPE QSFP28 - 1 x MPO 100GBase-SR4 Network - For Optical Network, Data Networking - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed.With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.
Features
The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.
MPO connector for plugging in multi-mode fiber cables.
Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.
Bit-error Rate (BER) lower than 10-15.
3.3 V power supply.
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fibre optic cable supports the high bandwidth to carry more information with greater fidelity
- Optical fibre cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fibre cable
Technical Specifications
Interfaces/Ports
| Total Number of Ports | 1 |
Technical Information
| Application/Usage | Data Networking |
| Optical Network |
General Information
| Product Type | QSFP28 |
| Manufacturer Part Number | 845966-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 100Gb QSFP28 MPO SR4 100m Transceiver |
| Brand Name | HPE |
Media & Performance
| Network Technology | 100GBase-SR4 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
Physical Characteristics
| Weight (Approximate) | 36.3 g |
| Height | 8.4 mm |
| Width | 18.3 mm |
| Depth | 72.6 mm |
Price Trend
Current Price
AUD 10,227.00
