IBM 42U 1200MM DEEP DYNAMIC RACK
IBM 42U 1200MM DEEP DYNAMIC RACK
Product Overview
IBM 42U 1200MM DEEP DYNAMIC RACK

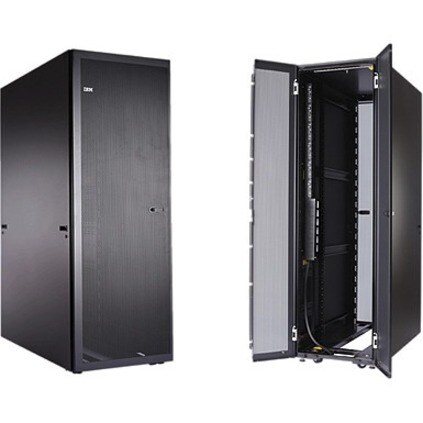

IBM 42U and 47U 1200 mm Deep Rack offerings are industry-standard 19-inch server cabinets that are designed for high availability IBM System x and BladeCenter environments. They are optimized to help maximize floor space, expedite installation, simplify cable management, and increase accessibility for improved serviceability. With a depth of 1200 mm (approximately 47 inches), these racks offer expansive rear channels with tool-less button mounts for virtually effortless installation of up to six IBM 0U vertical rack strip power distribution units (PDU) or can easily accommodate vertical cable organizers or mounting other equipment. Figure 1 shows the IBM 42U 1200mm Deep Static Rack, 93614PX.Did you know?
IBM Dynamic Racks enable you to receive your System x and BladeCenter solutions fully integrated in the rack and ready to instantly deploy into your data center. Dynamic Racks are designed to affordably, safely, and securely handle shipping fully loaded configurations up to 950 kg (2,100 lbs), which can help to increase your efficiency by reducing the time and cost that is associated with typical server deployments. However, if you do not need to ship the rack fully loaded, IBM offers cost-effective Static offerings that are ideal when doing on-site integration.
- Rack Cabinet allows quick and easy retrieval of your items with better organising and feasible mounting
- Server application, usage offers maximum items, valuables, equipment organisational, storage, placement reliability
- Floor Standing form factor for your convenience and simplicity of usage
- Removable Door feature for maximum items, valuables, equipment organisational, storage, placement efficiency, and convenience
Technical Specifications
Miscellaneous
| Package Contents |
|
| Certifications & Standards | EIA-310-D |
General Information
| Product Type | Rack Cabinet |
| Manufacturer Part Number | 93604PX |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | 42U 1200mm Deep Dynamic Rack |
| Brand Name | Lenovo |
Technical Information
| Application/Usage | Server |
| Features | Perforated Door |
| Lockable | |
| Casters | |
| Cable Management | |
| Removable Door |
Physical Characteristics
| Weight (Approximate) | 141 kg |
| Form Factor | Floor Standing |
| Rack Width | 482.60 mm |
| Rack Height | 42U |
| Height | 2000 mm |
| Width | 605 mm |
| Depth | 1200 mm |
| Static/Stationary Weight Capacity | 952.54 kg |
| Rack Depth | 1188.72 mm |
Price Trend
Current Price
AUD 9,635.00
