3ft DB9 to 3.5mm Serial Cable RS232
3ft DB9 to 3.5mm Serial Cable RS232
Product Overview

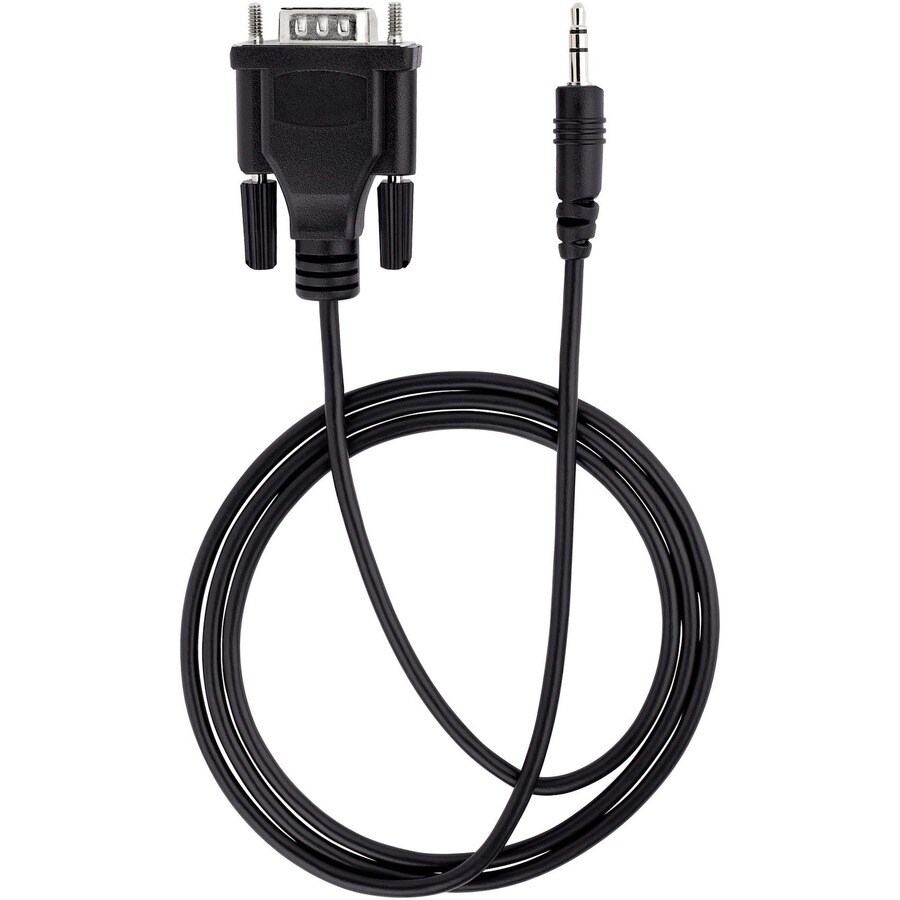

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - Cable for Projector, TV - First End: 1 x Mini-phone Stereo Audio - Male - Second End: 1 x 9-pin DB-9 RS-232 Serial - Male - Shielding - Nickel Plated Connector - 28 AWG - Black
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
- Fully compatible with projectors
- Transferring data is not a big deal! Transfer your valuable data with ease
- Features EMI Protection
Technical Specifications
Physical Characteristics
| Material Details | metal - shell |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Mylar |
| Product Color | Black |
| Product Material | Metal |
| Connector Material | Polyvinyl Chloride (PVC) |
Technical Information
| Cable Length | 1 m |
| Device Supported | Audio Device |
| Projector | |
| TV | |
| Digital Signage | |
| Computer | |
| Shielding | Yes |
| Features | Strain Relief |
| Strain Resistant | |
| Damage Resistant | |
| Abrasion Resistant | |
| Bendable | |
| Molded | |
| Screw Lock | |
| EMI Protection | |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Connector Plating | Nickel |
| American Wire Gauge | 28 AWG |
| Connector Gender on Second End | Male |
General Information
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | 9M351MRS232CABLE |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | DB9 to 3.5mm RS232 Serial Cable |
| Brand Name | StarTech.com |
Price Trend
Current Price
AUD 20.99
