9PX 2000VA ANZ Li-Ion UPS
9PX 2000VA ANZ Li-Ion UPS
Product Overview
Eaton 9PX2000IRTAU-L Double Conversion Online UPS - 2 kVA/1.80 kW - Rack/Tower - 230 V Input - 200 V AC, 208 V AC, 220 V AC Output - 6 x IEC 60320 C13 (10A), 2 x Aust. 10A - Single Phase - Serial Port - Relay-MS Card, Network-M3 Card
The Eaton 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. The 9PX lithium-ion UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
- Li-Ion batteries for longer life
- On-line double conversion topology, with automatic by-pass and PFC system
- Energy Star UPS (up to 93.5% efficiency in Online mode)
- More real power in watts, Unity power factor (VA=W)
- 5 years full warranty
- Flexible RT form factor : convertible Tower / 2U Rack

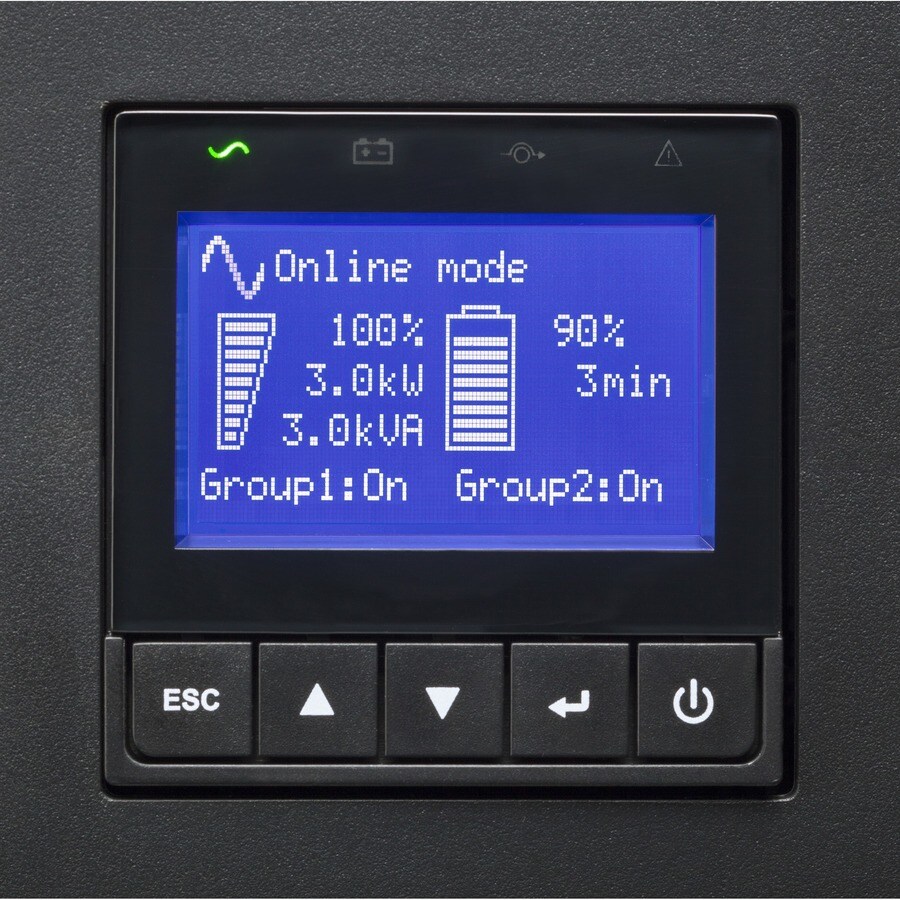

- Easy to operate : next-generation multilingual LCD display
- Manageable outlets groups (2 groups) with Energy metering
- 1 USB port + 1 Serial + 3 dry contacts (optocouplers on DB9)
- 1 Slot for optional com card (Network Management card, ModBus or Contacts/Serial cards)
Technical Specifications
| Status Indicators | LCD Display |
| Maximum Operating Temperature | 40°C |
| Sound Emission (A-Weighted) | 47 dB(A) |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Network Management | Relay-MS Card |
| Network-M3 Card |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 22.10 kg |
| Height | 86.5 mm |
| Width | 440 mm |
| Depth | 605 mm |
| Input Voltage | 230 V |
| Output Voltage | 200 V AC |
| 208 V AC | |
| 240 V AC | |
| 230 V AC | |
| 220 V AC | |
| Surge Energy Rating | 296 J |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Battery Life | 8 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 (10A) |
| Phase | Single Phase |
| Receptacle Type | Aust. 10A |
| IEC 60320 C13 (10A) | |
| Receptacle Detail | 2 x Aust. 10A |
| 6 x IEC 60320 C13 (10A) |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9PX2000IRTAU-L |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | 9PX2000IRTAU-L |
| Product Name | 9PX 9PX2000IRTAU-L 2000VA Rack/Tower UPS |
| Product Series | 9PX |
| Brand Name | Eaton |
