9PX 3000VA ANZ Li-Ion UPS
9PX 3000VA ANZ Li-Ion UPS
Product Overview

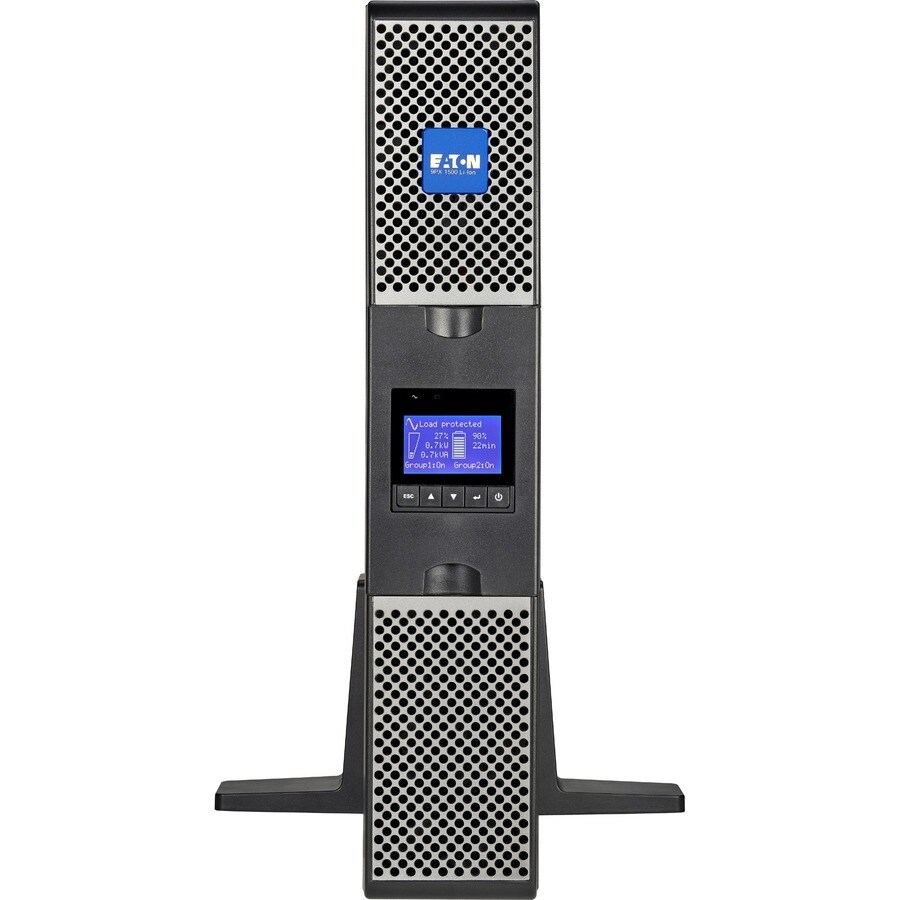

Eaton 9PX Lithium-ion 9PX3000IRTANZ-L Double Conversion Online UPS - 3 kVA/2.40 kW - 2U Rack/Tower - 3 Hour Recharge - 10.50 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC Output - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A), 2 x Outlet Group - Single Phase - Serial Port
The 9PX lithium-ion UPS is part of the Eaton 9 series single-phase double-conversion UPS line, best applied to mission-critical equipment for constant power conditioning.The 9PX lithium-ion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1.5 to 3 kVA, while also offering up to four external battery modules (EBM) for extra runtime.
The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
For connectivity, the 9PX is compatible with the Gigabit Network Card (NETWORK-M2). It improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage.
- Li-Ion batteries for longer life
- On-line double conversion topology, with automatic by-pass and PFC system
- Energy Star UPS (up to 93.5% efficiency in Online mode)
- More real power in watts, Unity power factor (VA=W)
- 5 years full warranty
- Flexible RT form factor : convertible Tower / 2U Rack
- Easy to operate : next-generation multilingual LCD display
- Manageable outlets groups (2 groups) with Energy metering
- 1 USB port + 1 Serial + 3 dry contacts (optocouplers on DB9)
- 1 Slot for optional com card (Network Management card, ModBus or Contacts/Serial cards)
Technical Specifications
Controls/Indicators
| Status Indicators |
Multilingual LCD : |
Environmental Conditions
| Sound Emission | 40 dB |
| Maximum Operating Temperature | 40°C |
Management
| Network Management | Modbus RTU |
| Modbus TCP |
Miscellaneous
| Package Contents |
|
| Energy Star | Yes |
Interfaces/Ports
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Technical Information
| Application/Usage | Mission Critical Equipment |
| Network | |
| Non-critical Device | |
| Server | |
| Storage | |
| Telecommunication | |
| Virtual Platform | |
| Data Center | |
| Edge Computing | |
| Healthcare | |
| IT Infrastructure | |
| Mining | |
| Plug/Connector Type | IEC 60320 C20 (16A) |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 (10A) |
| Outlet Group | |
| IEC 60320 C19 (16A) | |
| Receptacle Detail | 8 x IEC 60320 C13 (10A) |
| 2 x Outlet Group | |
| 2 x IEC 60320 C19 (16A) |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Half Load) | 21 Minute |
| Backup/Run Time (Full Load) | 10.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
Physical Characteristics
| Weight (Approximate) | 22.80 kg |
| Rack Height | 2U |
| Height | 86.5 mm |
| Width | 440 mm |
| Depth | 605 mm |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9PX3000IRTANZ-L |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | 9PX3000IRTANZ-L |
| Product Name | 9PX Lithium-ion UPS |
| Product Line | 9PX Lithium-ion |
| Product Series | 9PX |
| Brand Name | Eaton |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 220 V AC | |
| 230 V AC | |
| 208 V AC | |
| 200 V AC | |
| Input Voltage Range | 176 V AC - 276 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
