Eaton 9PX 3kVA Industrial conformal coat
Eaton 9PX 3kVA Industrial conformal coat

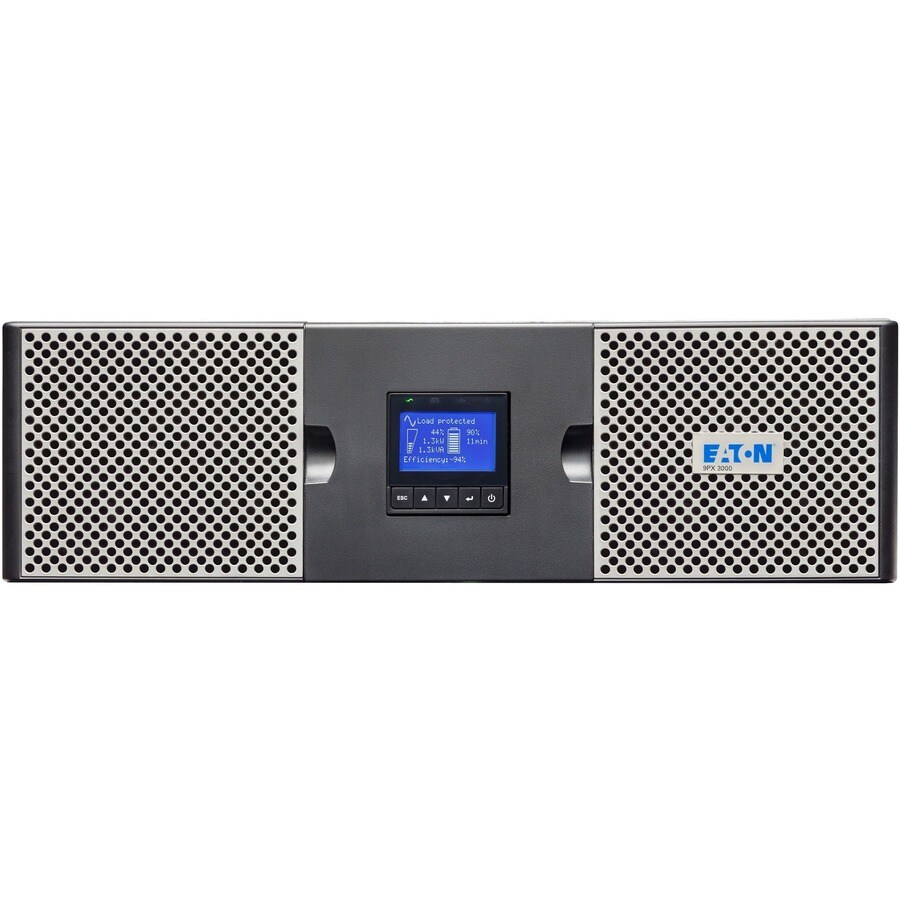

Product Overview
Eaton Double Conversion Online UPS - 3 kVA/3 kW - 3U Rack-mountable - 120 V AC, 230 V AC Input - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A) - Serial Port - USB - Relay-MS Card, Network-M3 Card, INDGW-M2 Card
Industrial grade UPSIndustrial grade UPS are designed to protect mission critical equipment where a clean and controlled environment for the UPS is not always available. These environments include but not limited to, mining, rail, utilities plants, and medical facilities. High quality siliconbased coating on PCB boards are done at the manufacturing level to reduce chances of defects and handling errors. Conformally coated boards provides the UPS properties such as dust-proof, hydrophobic, and resistance to oxidation, thermal, as well as moisture. All units go through vigorous tests that includes vibration test (to IEC 60068-2-6 Class A). Industrial units also have a high ambient temperature tolerance (40°C-55°C with derating to 60% nominal load).
- 3 kVA load capacity provides sufficient backup during power failures
- 3 kW load capacity - backup power for your valuable electronics
Technical Specifications
Miscellaneous
| Energy Star | Yes |
Environmental Conditions
| Sound Emission | 40 dB |
| Maximum Operating Temperature | 40°C |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
Management
| Network Management | INDGW-M2 Card |
| Network-M3 Card | |
| Relay-MS Card |
Physical Characteristics
| Weight (Approximate) | 27.40 kg |
| Rack Height | 3U |
| Height | 130 mm |
| Width | 440 mm |
| Depth | 485 mm |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9PX3000IRTCC |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Name | 9PX 3000VA Rack-mountable UPS |
| Product Series | 9PX |
| Brand Name | Eaton |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Voltage Range | 100 V AC - 276 V AC |
| 176 V AC - 276 V AC | |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
Technical Information
| Application/Usage | Mining |
| Medical | |
| Mission Critical Equipment | |
| Utility Plant | |
| Rail | |
| Plug/Connector Type | IEC 60320 C20 (16A) |
| Receptacle Type | IEC 60320 C13 (10A) |
| IEC 60320 C19 (16A) | |
| Receptacle Detail | 8 x IEC 60320 C13 (10A) |
| 2 x IEC 60320 C19 (16A) |
