Product Overview

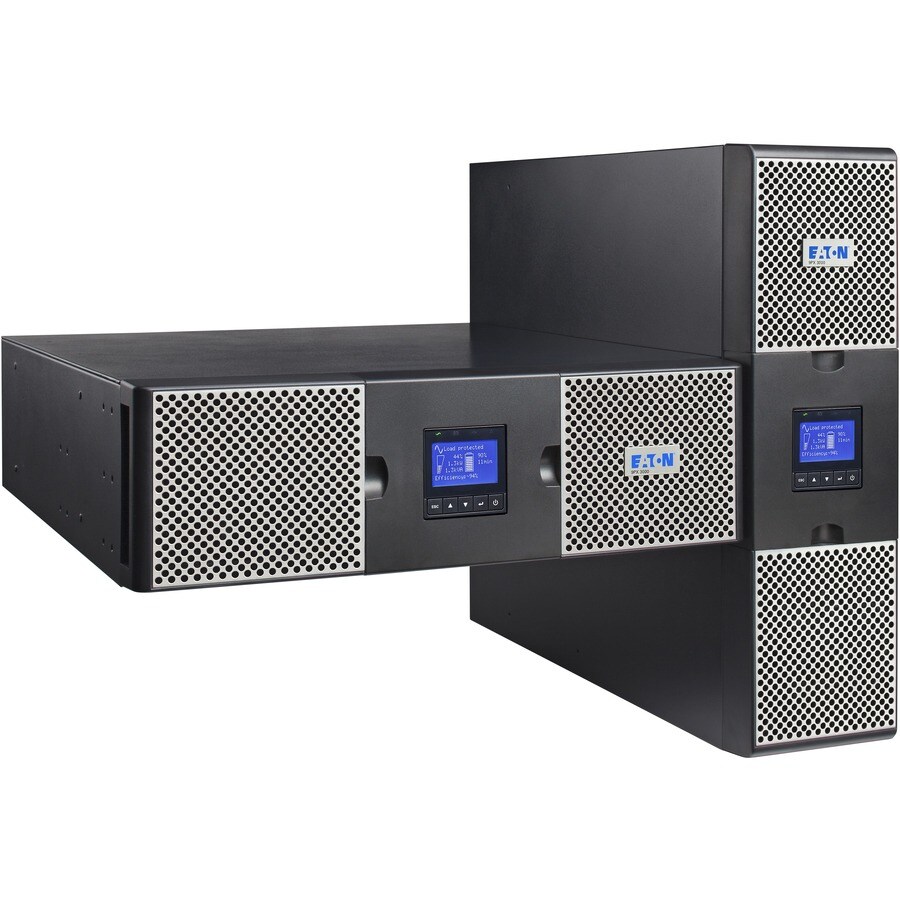

Eaton Double Conversion Online UPS - 6 kVA/5.40 kW - 3U Rack/Tower, Rack-mountable - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC Output - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - Serial Port
Eaton 9PX 6kVA 1:1 UPS (internal batteries) no rail kits- 6 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 5.40 kW load capacity
Technical Specifications
Controls/Indicators
| Status Indicators | Energy metering - kWh values can be monitored using the LCD |
Environmental Conditions
| Sound Emission | 45 dB |
| Maximum Operating Temperature | 40°C |
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Management
| Network Management | Relay-MS Card |
| DB-9 RS-232 | |
| ModBus-MS Card | |
| Network-MS Card |
Physical Characteristics
| Weight (Approximate) | 48 kg |
| Rack Height | 3U |
| Height | 130 mm |
| Width | 440 mm |
| Depth | 685 mm |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9PX6KI-CC |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Name | 9PX 6000VA Rack/Tower UPS |
| Product Series | 9PX |
| Brand Name | Eaton |
Technical Information
| Application/Usage | IT Infrastructure |
| IT | |
| Data Center | |
| Overload Protection | Yes |
| Plug/Connector Type | Hardwired |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 200 V AC | |
| 208 V AC | |
| 220 V AC | |
| Input Voltage Range | 176 V AC - 276 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
