Product Overview

Eaton 9SX1000ITMR Double Conversion Online UPS - 1 kVA/900 W - Tower - 230 V AC, 120 V AC Input - 6 x IEC 60320 C13 (10A) - Serial Port - USB - Network-M2 Card, INDGW-M2 Card, Relay-MS Card

Marine grade UPS

Eaton's marine UPS are specially engineered for shipping environments and applications, built to meet and exceed industry standards. These units are designed to protect critical onboard functions and processes, such as navigation, communication, bridge equipment, lighting, and automation. Marine UPS come as a kit, and includes: Industrial grade UPS, Marine Filter, and an installation bolt down kit (for tower mount UPS only). When deployed as a complete kit, your system will be DNV-GL Type Approved

  • 1 kVA load capacity - work without any interruption during power outages
  • 900 W load capacity - backup power for your valuable electronics

Technical Specifications

Environmental Conditions
Sound Emission41 dB
Minimum Operating Temperature0°C
Maximum Operating Temperature40°C
Management
Network ManagementRelay-MS Card
Network-M2 Card
INDGW-M2 Card
Miscellaneous

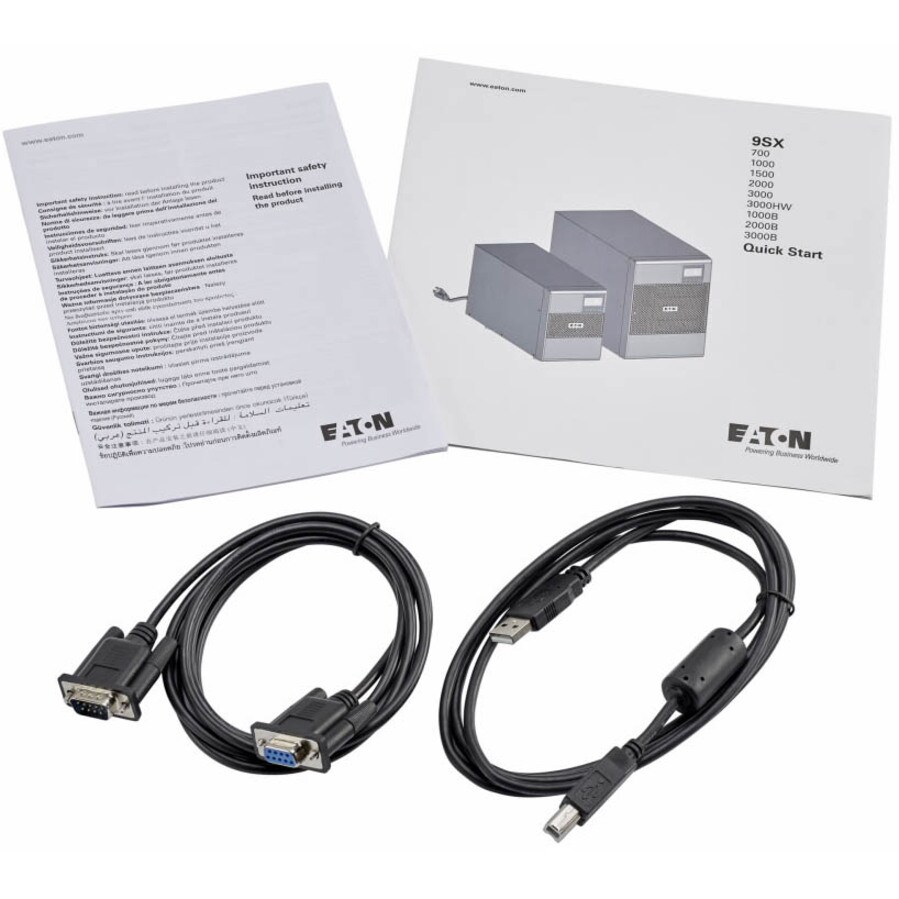

Package Contents
  • 9SX1000ITMR 1000VA Tower UPS
  • Filter & Inst. Kit
Certifications & Standards
    • 2IEC/EN 62040-1
    • UL 1778 (Marine)
    • CSA 22.2 (Marine)
    • IEC/EN 62040-2
    • FCC Class B (Marine)
    • CISPR22 Class B (Marine)
    • DNV-GL Type approved (Marine)
    • CE
    • CB report (TUV)
    • cULus
    • EAC
    • RCM
    • KC (9PX)
Energy StarYes
Interfaces/Ports
USBYes
Number of USB Ports1
Serial PortYes
EPO PortYes
Power Description
Input Voltage120 V AC
230 V AC
Input Voltage Range190 V AC - 276 V AC
120 V AC - 276 V AC
Input Frequency60 Hz
70 Hz
50 Hz
40 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)900 W
Physical Characteristics
Weight (Approximate)15 kg
Height6400.8 mm
Width4064 mm
Depth9829.8 mm
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part Number9SX1000ITMR
Manufacturer Website Addresshttp://www.eatoncorp.com.au
ManufacturerEaton Corporation
Product Model9SX1000ITMR
Product Name9SX1000ITMR 1000VA Tower UPS
Product Series9SX
Brand NameEaton
Technical Information
Application/UsageAutomation System
Communication System
Marine
Equipment
Industry
Plug/Connector TypeIEC 60320 C14 (10A)
Receptacle TypeIEC 60320 C13 (10A)
Receptacle Detail6 x IEC 60320 C13 (10A)
Efficiency Detail90% (Online Mode)
95% (Eco Mode)

Price Trend

Current Price
AUD 6,163.71
