Eaton 9SX 3000i Marine
Eaton 9SX 3000i Marine
Product Overview
Eaton 9SX Double Conversion Online UPS - 3 kVA/2.70 kW - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13, 1 x IEC 60320 C19 - Serial Port
Online double conversion UPSSuccessor of Eaton 9130 UPS
Performance and Availability
- Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
- The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for
- easy replacement of the UPS without powering down critical systems.
- With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
- Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.
- The new graphical LCD provides clear information on the UPS's status and measurements on a single screen. Enhanced
- configuration capabilities are also available.
- The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton's Intelligent Power® Software.
- Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.
- 9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton's Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

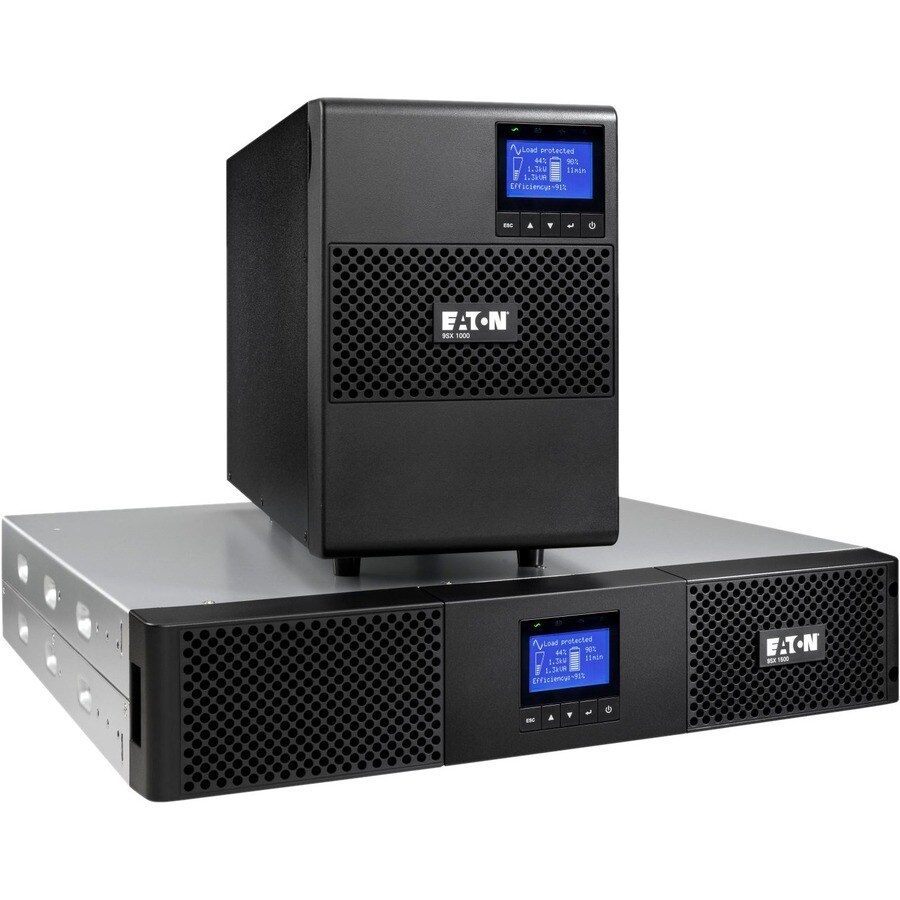

- One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.
- More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.
- 3 kVA load capacity - work without any interruption during power outages
- 2.70 kW load capacity - backup power for your valuable electronics
Technical Specifications
Controls/Indicators
Status Indicators | LCD |
Environmental Conditions
Sound Emission | 45 dB |
Maximum Operating Temperature | 40°C |
Interfaces/Ports
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Battery Information
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Capacity | 9000 mAh |
Battery Characteristics | Sealed |
Technical Information
Application/Usage | Data Storage |
Network Equipment | |
Telecommunication | |
Industrial Equipment | |
Medical | |
IT Equipment | |
Plug/Connector Type | IEC 60320 C20 |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
Receptacle Detail | 1 x IEC 60320 C19 |
8 x IEC 60320 C13 |
Physical Characteristics
Weight (Approximate) | 33.40 kg |
Height | 346 mm |
Width | 214 mm |
Depth | 412 mm |
General Information
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | 9SX3000IM |
Manufacturer Website Address | http://www.eatoncorp.com.au |
Manufacturer | Eaton Corporation |
Product Model | 9SX |
Product Name | Eaton 9SX 3kVA UPS |
Brand Name | Eaton |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Input Voltage Range | 120 V AC - 276 V AC |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Load Capacity (VA) | 3 kVA |
Load Capacity (Watt) | 2.70 kW |
