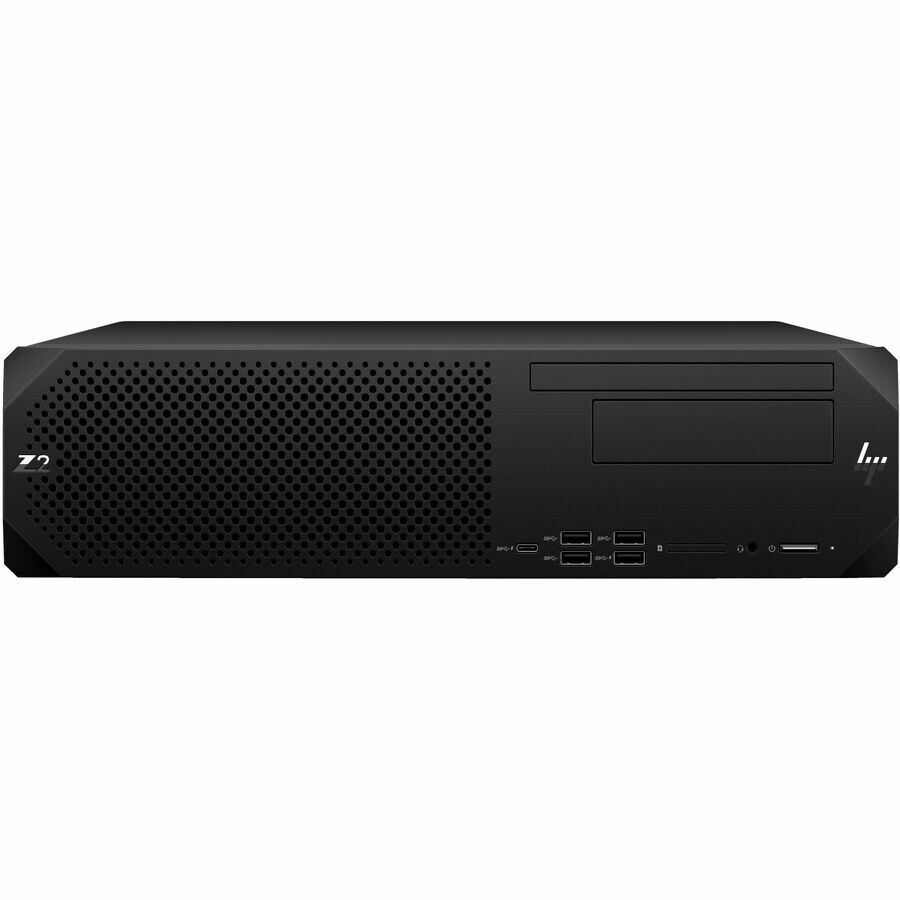

Z2 SFF G9 I7-14700 32 1TB 1TB A2000 W11P
Z2 SFF G9 I7-14700 32 1TB 1TB A2000 W11P
Product Overview
Z2 SFF G9 I7-14700 32GB DDR5-4800 1TB PCIE-Drive 1TB SATA HDD NVIDIA RTXA2000 12GB 4x MDP to DP Adapters Wifi-6 BT-5.3 Win 11 Pro 3/3/3 Warranty
Overview | Full size Z tower power at half the size
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
Full height, full length performance
Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.
Configurable for today. Expandable for tomorrow.
Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.
Features | Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Intel® Core™ i7 processor
Run several CPU-heavy programs simultaneously without sacricing performance with an Intel® Core™ i7 processor.
Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.
Tool-less Access
Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.
Thermal Management
Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.
Custom Performance Modes
Take on the toughest workflows with three custom pre-set modes that optimize performance from the BIOS-High Performance, Performance and Quiet.
| |
Technical Specifications
Additional Warranty Information | 3 year (3/3/3) limited warranty includes 3 year of parts, labor and on-site repair. |
Chipset Manufacturer | Intel |
Chipset Model | W680 |
Operating System | Windows 11 Pro |
Operating System Platform | Windows |
Bluetooth | Yes |
Wireless LAN | Yes |
Ethernet Technology | Gigabit Ethernet |
RAID Levels | 0, 1 |
Controller Type | Serial ATA/600 |
NVMe | |
RAID Supported | Yes |
Graphics Controller Manufacturer | NVIDIA |
Graphics Controller Model | A2000 |
Graphics Memory Capacity | 6 GB |
Graphics Memory Accessibility | Dedicated |
Maximum Memory Bandwidth | 288 GB/s |
Input Voltage | 230 V AC |
120 V AC | |
Frequency | 60 Hz |
50 Hz | |
Maximum Power Supply Wattage | 450 W |
Drive Type | HDD/SSD |
Hard Drive Interface | Serial ATA |
Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
Total Hard Drive Capacity | 1 TB |
Total Solid State Drive Capacity | 1 TB |
Product Type | Workstation |
Manufacturer Part Number | A1NA7PT |
Manufacturer Website Address | http://www.hp.com/au/ |
Manufacturer | HP Inc. |
Product Name | Z2 Small Form Factor G9 Workstation |
Product Series | Z2 G9 |
Brand Name | HP |
Weight (Approximate) | 5 kg |
Form Factor | Small Form Factor |
Height | 100 mm |
Width | 384 mm |
Depth | 308 mm |
Product Color | Black |
Color Family | Black |
DisplayPort | Yes |
Number of DisplayPort Outputs | 2 |
Total Number of USB Ports | 12 |
Mini DisplayPort | Yes |
Number Of Ethernet Ports | 1 |
USB Type-C | Yes |
USB Type-C Detail | 1 Type-C SuperSpeed USB 20Gbps signaling rate port (charge supports up to 5V/3A) |
Number of Mini DisplayPort | 4 |
Error Checking | Non-ECC |
Maximum Memory Supported | 128 GB |
Signal Processing | Unbuffered |
Standard Memory | 32 GB |
Memory Technology | DDR5 SDRAM |
Memory Clock Speed | 4.80 GHz |
Memory Configuration | 1 x 32GB |
Total Number of Memory Slots | 4 |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | China Environmental United Certification Center (CEC) |
Energy Star | Yes |
TCO Certified | Yes |
Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Restriction of Hazardous Substances (RoHS) |
Processor Type | Core i7 |
Processor Socket | Socket LGA-1700 |
L3 Cache | 33 MB |
Processor Model | i7-14700 |
Processor Core | Hexadeca-core (16 Core) |
Processor Manufacturer | Intel |
Number of Processors Supported | 1 |
Number of Processors Installed | 1 |
Processor Generation | 14th Gen |
Processor Threads | 28 |
