1m 10 Gb Aqua MM Fiber Patch Cable LC/LC

1m 10 Gb Aqua MM Fiber Patch Cable LC/LC

1m 10 Gb Aqua MM Fiber Patch Cable LC/LC

Product Overview

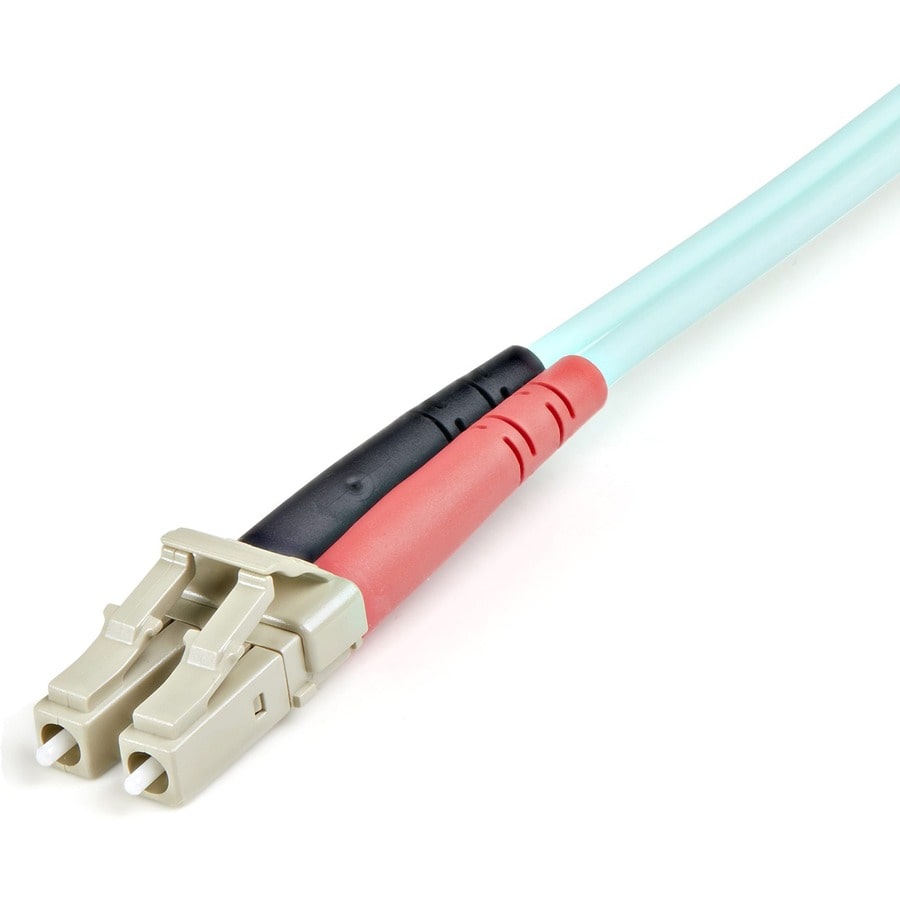

StarTech.com 1m (3ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord, 100G, LSZH Fiber Jumper Cord - 1m (3.3ft) OM3 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)

OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10-Gigabit Ethernet connection. With laser-optimized multimode fiber (LOMMF), it is ideal for connecting 850nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. High-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Maximum data-transfer rate is 100Gbps. Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat or in the event of a fire. Use in a wide range of environments, including industrial settings, central offices and schools as well as residential settings. OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.

  • Fully compatible with network devices
  • Experience a simpler way to connect devices with the entire business network
  • Features Fibre Optic cable type
  • Features Molded

Technical Specifications

Physical Characteristics
Weight (Approximate)15 g
Product ColorAqua
Color FamilyGreen
Technical Information
Cable Length1 m
Data Transfer Rate10 Gbit/s
Device SupportedSwitch
Router
Network Device
Hub
Jacket TypeLSZH
FeaturesCorrosion Resistant
Flame Retardant
Halogen Free
Molded
Cable CharacteristicPatch Cable
Cable TypeFibre Optic
Connector Type on First EndLC Network - Male
Connector Type on Second EndLC Network - Male
Core/Cladding Diameter50/125 µm
Fiber Optic ModeMulti-mode
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x LC Network - Male
General Information
Product TypeNetwork Cable
Manufacturer Part NumberA50FBLCLC1
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1 Each
ManufacturerStarTech.com
Product NameFiber Optic Duplex Patch Network Cable
Brand NameStarTech.com

Price Trend

Current Price
AUD 30.99
