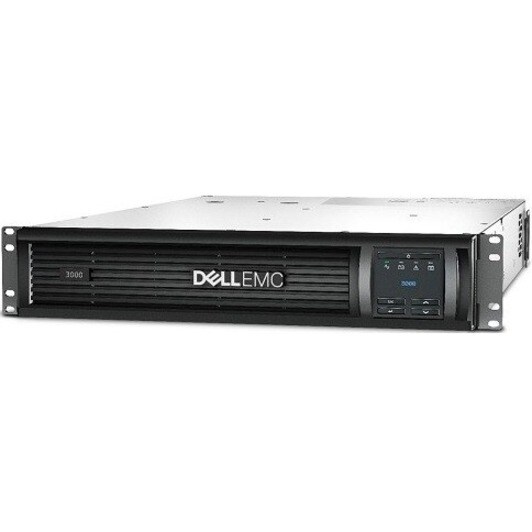

DELL SMART-UPS DLT3000RMI2UC
DELL SMART-UPS DLT3000RMI2UC
Product Overview
Dell Smart-UPS Standby UPS - 3 kVA/2.70 kW - 2U Rack-mountable - AVR - 3 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13, 1 x IEC 60320 C19 - Serial Port
In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
- Boost and trim automatic voltage regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Cold-start capable
- Disconnected battery notification
- Protects computers and other electronic devices from harm caused by short power outages
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
- 3 kVA load capacity - work without any interruption during power outages
- 2.70 kW load capacity - backup power for your valuable electronics
Technical Specifications
| Status Indicators | LCD Display |
| Alarm | Alarm |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| AVR | Yes |
| Receptacle Detail | 1 x IEC 60320 C19 |
| 8 x IEC 60320 C13 |
| Product Type | Standby UPS |
| Manufacturer Part Number | AA869897 |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Name | Smart-UPS 3000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | Dell |
| Weight (Approximate) | 44.28 kg |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 480 mm |
| Depth | 683 mm |
| Product Color | Black |
| Color Family | Black |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 459 J |
| Waveform Type | Sine Wave |
| Pure Sine Wave | |
| Input Voltage Range | 150 V AC - 300 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
