Product Overview

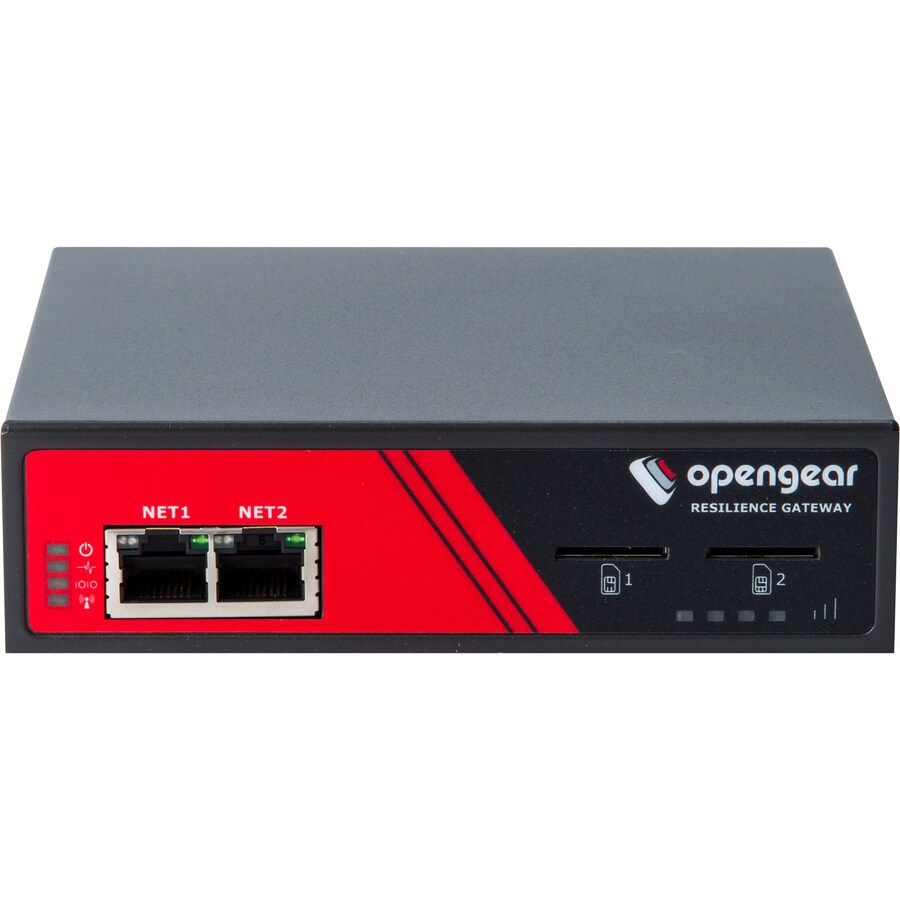

Resilience Gateway 4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, Global 4G LTE-A Pro cellular, dual SIM, 2 DIO and 2 output ports
The ACM7000-L Resilience Gateway ensures uptime at branch offices, retail stores, kiosks and other remote sites. Cellular access provides an always-on gateway to your off-site network devices, even when the primary network is down.
Identify and remediate issues at the network edge before they become failures with Smart OOB™. Maximize WAN resilience with Failover to Cellular™ to 4G LTE networks and built-in multicarrier capabilities.
- 4-8 serial ports, out-of-band management of network and server devices
- 4 x USB 2.0 console ports, out-of-band management of network and server devices
- Smart OOB extends beyond traditional out-of-band management
- Failover to Cellular™ and IP Passthrough for out-of-band access and failover network connectivity over cellular.
- Integrated RESTful API engine on devices running firmware 4.0 or higher
- Manage all edge routers, firewalls, UPSes, PDUs with serial & USB & Ethernet consoles
- Centralize the management of all your enterprise remote sites and data centers with Lighthouse 5
- Automatically detect and recover from outages and repair equipment faults
- Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.
- Log audit trails to embedded 4GB local storage for troubleshooting and compliance
- Strong security, PCI DSS 3.2, FIPS140-2, SSL and SSH, stateful firewall, OpenVPN & IPsec
- Embedded internal temperature sensor
- Environmental and physical sensor alarm notification via SMS, SNMP or email
Technical Specifications
| Additional Information |
Models & Connectors: Emissions: EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015, ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 Immunity: EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 Isolation: Other Agency Approvals: CE, UL 1950, TUV, C-Tick, Security features to support PCI DSS 3.2 compliance, NERC CIP standards, FIPS 140-2 validated module Certificate #2473 Memory & CPU: MTBF: AC-DC (12V) adapter - 100,000 hours Operating System: Linux with source code access and Custom Development Kit (CDK) Security & Authentication: IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP Gateway Router: Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists |
| Application/Usage | Remote Monitoring |
| Remote Management | |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 600 g |
| Form Factor | Rail-mountable |
| Desktop | |
| Rack Mount | |
| Height | 35 mm |
| Width | 130 mm |
| Depth | 120 mm |
| Product Type | Infrastructure Management Equipment |
| Manufacturer Part Number | ACM7004-5-L |
| Manufacturer Website Address | http://www.opengear.com |
| Manufacturer | Opengear |
| Product Model | ACM7004-5-L |
| Product Name | ACM7000-L Resilience Gateway |
| Product Series | ACM7000-L |
| Brand Name | Opengear |
