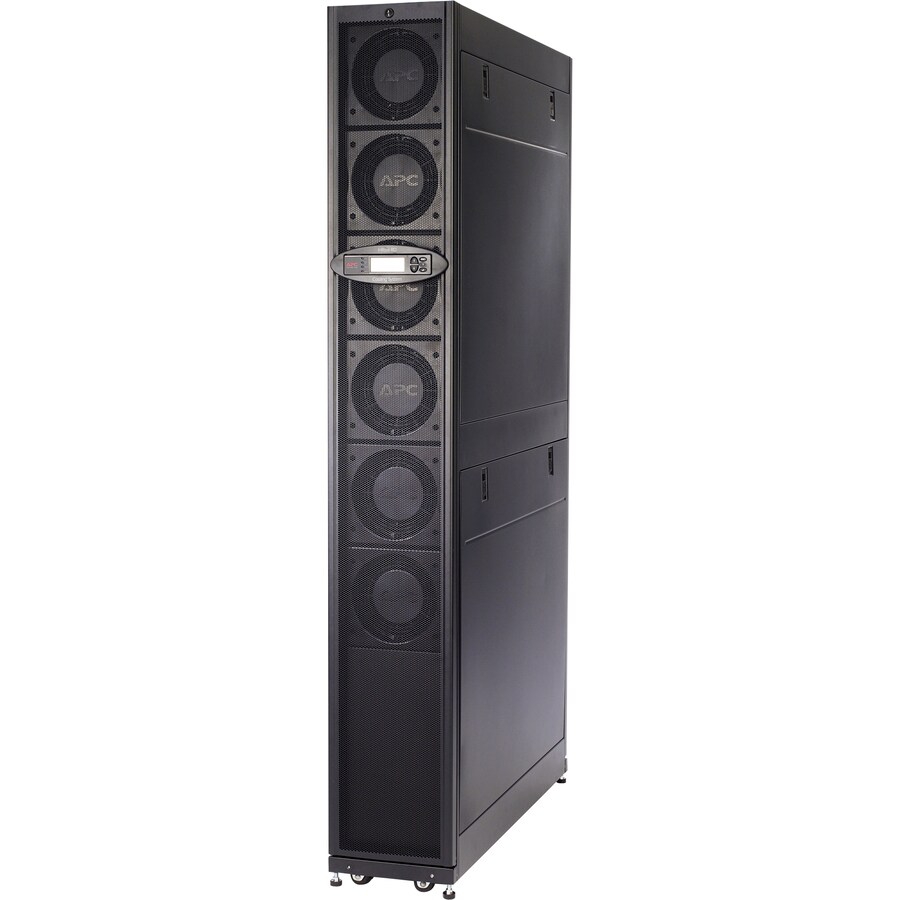

INROW RD 300MM AIR COOLED

INROW RD 300MM AIR COOLED

INROW RD 300MM AIR COOLED

Product Overview

InRow RD, 300mm, Air Cooled, 220-240V, 50Hz - Horizontal - Rear return

Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers.

  • Low GWP Refrigerant (R32), first Inrow with low GDP
  • 48v DC input supply for telecom (5G application) racks, first Inrow for telecom racks (48v DC)
  • Condensing unit design to support MDC
  • Max capacity 10.0 kW and min. capacity =1.0 kW (with “P” version) for edge and prefab application
  • Modulating capacity using compressor and fan speed modulating technology

Technical Specifications

Miscellaneous
Additional Information
    • Nominal Cooling Capacity: 9.90 kW
    • Coolant: R410A
    • Entering Air Relative Humidity: 32.0%
    • Entering Air Temperature: 85.0 °F (29.44 °C)
    • Compressor Type: Scroll
    • Air Discharge Patterns: Horizontal
    • Intake Air: Rear Return
    • Air Flow: 2290.0 CFM (1080.76 lps)
    • Condensate Pump Capacity: 2.600 gal/hour (0.000 lps)
    • Nominal Input Voltage: 220,240
    • Input Power: 4400 Watts
    • Input Frequency: 50 Hz
    • Rack Height: 42U
    • Control Panel: Multi-function LCD Status and Control Console
    • Audible Alarm: Audible and Visible Alarms Prioritized by Severity
Package Contents
  • InRow RD Cooling System
  • Installation Guide
  • Operations and Maintenance Manual
Physical Characteristics
Weight (Approximate)183.25 kg
Height1991.1 mm
Width299.7 mm
Depth1070.1 mm
Product ColorBlack
General Information
Product TypeCooling System
Manufacturer Part NumberACRD101
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameInRow RD Cooling System
Product LineInRow RD
Brand NameAPC by Schneider Electric

Price Trend

Current Price
AUD 21,100.00
