ATDEC FULL MOTION WALL MOUNT 70KG LOAD
ATDEC FULL MOTION WALL MOUNT 70KG LOAD
Product Overview
Atdec Wall Mount for Flat Panel Display, Touchscreen Monitor - Black - Horizontal/Vertical - 81.3 cm to 203.2 cm (80") Screen Support - 69.85 kg Load Capacity - 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 400 - VESA Mount Compatible - Aluminium
Full motion wall mount to 70kg (156lb)

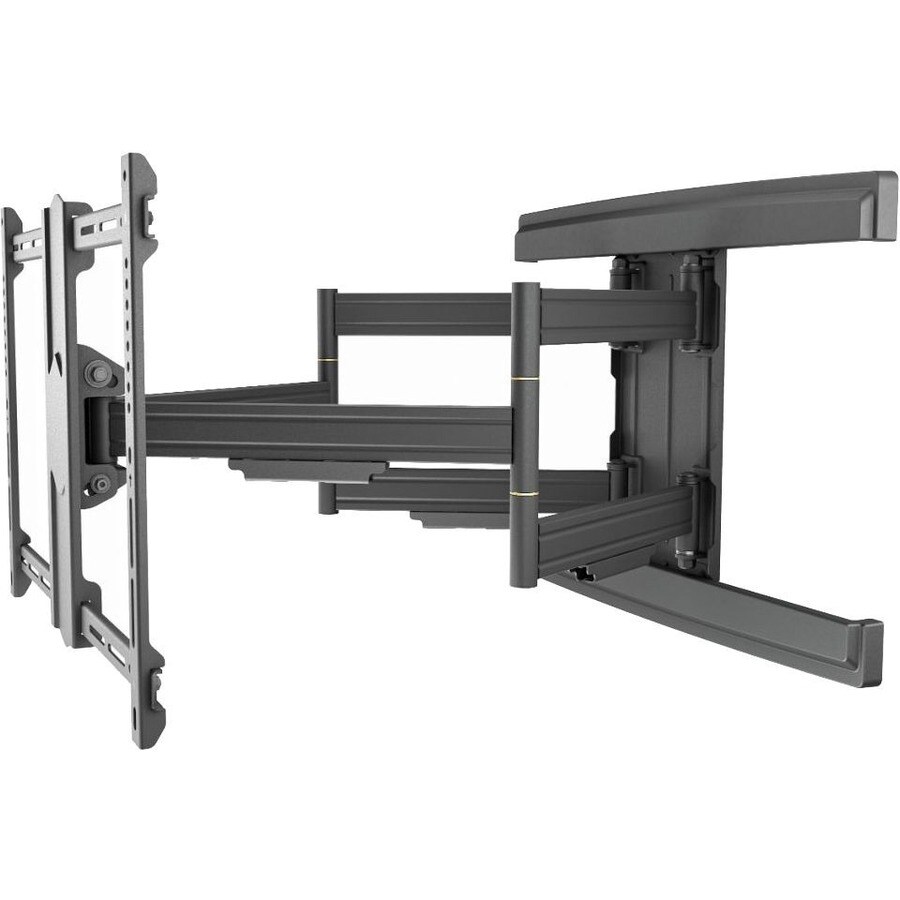

AD-WM-7060 full motion wall mount has capacity 154lb (70kg). The mounted display can be moved in/out, laterally, up/down, and rotationally.
The mount has fixed angle parallel to the wall and multiple features for fast and easy installation. Lateral shift enables the display to be positioned exactly as desired, even if offset to the wall bracket position. It has a built-in spirit level, forgiving slotted mounting holes, quick-connect display attachment, and easy to conceal magnetic tipped display release cords.
Choose me for:
- Mount site isn't an optimal viewing angle
- Easy access to the rear of the display
- Pre-assembled for easy installation
Technical Specifications
| Product Type | Wall Mount |
| Manufacturer Part Number | AD-WM-7060 |
| Manufacturer Website Address | http://www.atdec.com.au |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Full Motion All Mount to 70kg (156lb) |
| Brand Name | Atdec |
| Device Supported | Flat Panel Display |
| Touchscreen Monitor | |
| Features | +/- 90° Pan Swivel |
| Adjustable Tension | |
| Cable Management | |
| Easy to Install | |
| Extendable Arm | |
| Flexible | |
| Full Motion | |
| Lateral Adjustment | |
| Leveling System | |
| Pan | |
| Tilt | |
| +/- 3° Rotation | |
| +/- 3° Level Adjustment | |
| -15° to 2° Tilt | |
| Maximum Load Capacity | 69.85 kg |
| Minimum Screen Size Supported | 81.3 cm |
| Maximum Screen Size Supported | 203.2 cm (80") |
| Mount Profile | Slim Profile |
| Mount Pattern | Universal |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 2° |
| Height Adjustable | No |
| Minimum Rotate Angle | -3° |
| Maximum Rotate Angle | 3° |
| Minimum Pan Angle | -90° |
| Maximum Pan Angle | 90° |
| Application/Usage | Commercial |
| Wall | |
| Meeting Room | |
| Industrial | |
| Domestic | |
| Assembly Required | Yes |
| Weight (Approximate) | 17.87 kg |
| Form Factor | Wall Mountable |
| Length | 91.4 cm |
| Width | 54.6 cm |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 |
| 200 x 100 | |
| 300 x 200 | |
| 300 x 300 | |
| 600 x 400 | |
| 600 x 200 | |
| 400 x 400 | |
| 400 x 200 | |
| 400 x 300 | |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Plastic | |
| Aluminium |
