Product Overview
Atdec Modular Mounting Bracket for Digital Signage Display - Black - Height Adjustable - 50 kg Load Capacity - 200 x 200 - VESA Mount Compatible - 2 / Set

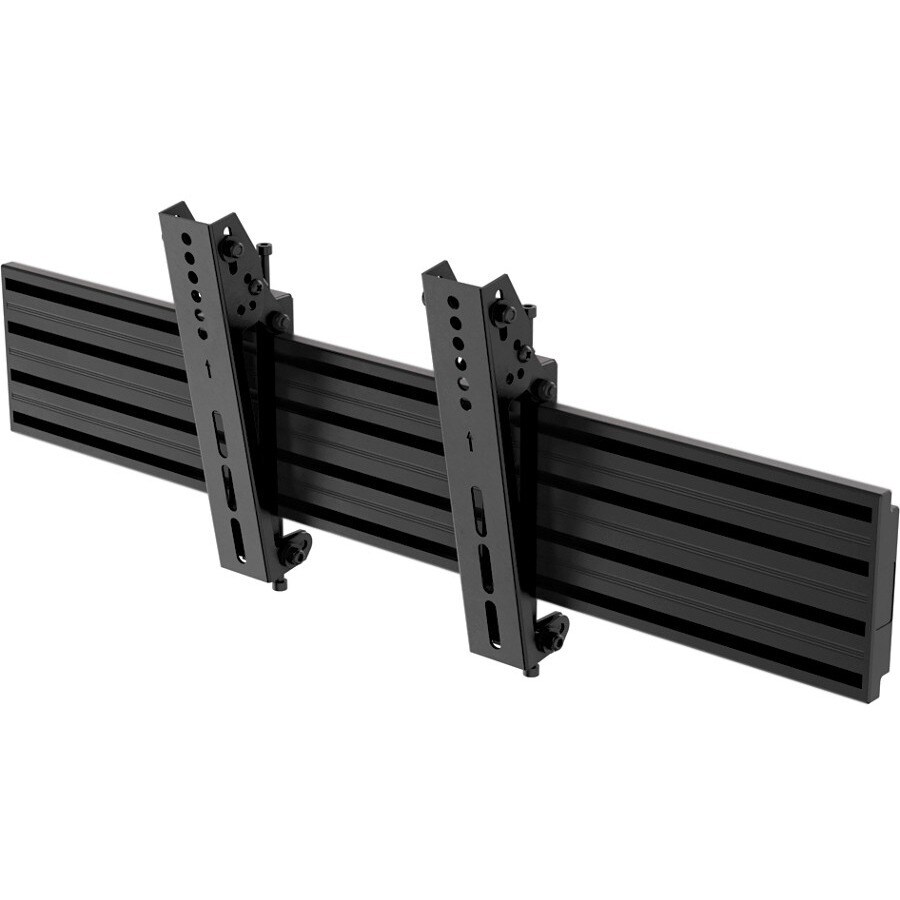

VESA 200 tilting brackets (set of two). Max load: 50kg
Ideal for single row, multi-screen installations, these brackets are designed to mount small to medium sized screens in a tilted position (up 20° subject to the screen size) along modular horizontal mounting rails. The universal VESA mounting pattern up to 200mm high suits small to medium size displays and allows them to be mounted in either landscape or portrait orientations. A simple hook-on design with the levelling screws on each bracket provide quick and easy pre and post-installation horizontal and vertical height adjustments.
Technical Specifications
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 |
| Product Color | Black |
| Product Material | Steel |
| Device Supported | Digital Signage Display |
| Features | Horizontal Adjustment |
| 20° Tilt | |
| Vertical Adjustment | |
| Maximum Load Capacity | 50 kg |
| Mount Pattern | Universal |
| Height Adjustable | Yes |
| Product Type | Mounting Bracket |
| Manufacturer Part Number | ADB-B200T |
| Manufacturer Website Address | http://www.atdec.com.au |
| Packaged Quantity | 2 / Set |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Modular Mounting Bracket |
| Product Line | Modular |
| Brand Name | Atdec |
