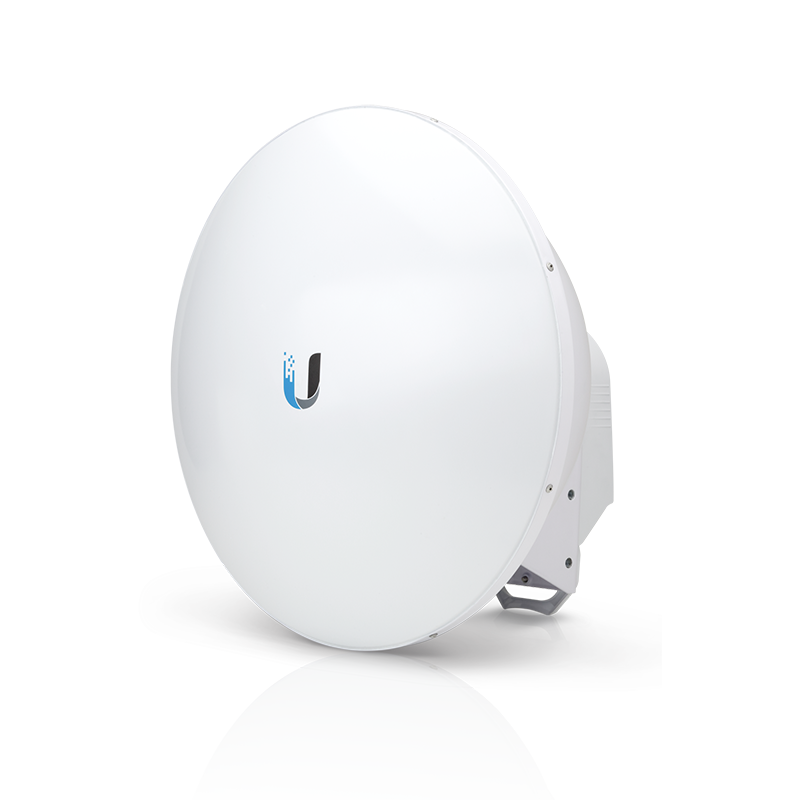

AF-5G23-S45
Product Overview
| AF-5G23-S45 | |
|---|---|
| Dimensions | 378 x 378 x 290 mm (14.88 x 14.88 x 11.42") |
| Weight | With Mount: 3.4 kg (7.5 lb) |
| Frequency | 5.1 - 5.9 GHz |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 190 N @ 200 km/h (43 lbf @ 125 mph) |
| Polarization | Dual Linear |
| F/B Ratio | 33 dB |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles |
Technical Specifications
| AF-5G23-S45 | |
|---|---|
| Dimensions | 378 x 378 x 290 mm (14.88 x 14.88 x 11.42") |
| Weight | With Mount: 3.4 kg (7.5 lb) |
| Frequency | 5.1 - 5.9 GHz |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 190 N @ 200 km/h (43 lbf @ 125 mph) |
| Polarization | Dual Linear |
| F/B Ratio | 33 dB |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles |
