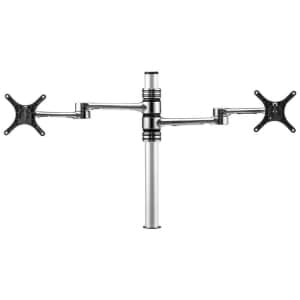

ATDEC DUAL DISPLAY MONITOR ARM SILVER

ATDEC DUAL DISPLAY MONITOR ARM SILVER

ATDEC DUAL DISPLAY MONITOR ARM SILVER

Product Overview

Atdec Mounting Arm for Display, Monitor, Flat Panel Display, Curved Screen Display, Mini PC - Polished - Landscape/Portrait - Height Adjustable - 2 Display(s) Supported - 68.6 cm (27") Screen Support - 15.97 kg Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminium

The AFS-AT-DC is designed to support two displays up to 8kg. This desk mount is featuring a 525mm pole with two articulated display arms. The arms can be independently set to the desired height to ensure perfect display alignment be it identical or different size monitors. Easy glare control and focal distance adjustments are possible thanks to three points of articulation on each arm, tilt and pan functions. The rotating function at the VESA head allows applications in either landscape or portrait orientation. The displays can be set in a back-to-back or side-by-side configuration (up to 27" monitors in a side-by-side landscape orientation). Generous cable management completes the sleek and professional look.

This solution consists of the following individual components:
1 x AF-AT single display desk mount
1 x AF-AA accessory monitor arm.

Product specifications:

  • Flat screen monitors: maximum load up to 8kg per monitor
  • Curved screen monitors: maximum load up to 5.5kg per monitor
  • Optional 360° arm rotation (can be limited to 180°)
  • Supports mini PCs (AC-MP accessory sold separately)
  • Includes desk clamp and bolt through desk fixing options
  • 10-year warranty
  • Installation hardware included

Functionality specifications:

  • Ergonomic
  • Landscape to portrait rotation
  • Screen sharing capability
  • Engineered bearing joints for smooth movement
  • Quick-release display head with security screw
  • Glare control and optimal viewing angle adjustment via tilt and pan capabilities
  • Individual monitor height requirements settings

Additional design considerations:

  • Tool-less height adjustment
  • Advanced, integrated cable management for a clean look
  • Lightweight, durable, recyclable aluminium construction
  • Available in silver, black, or white
  • Sleek, supple design

Technical Specifications

General Information
Product TypeMounting Arm
Manufacturer Part NumberAFS-AT-DC-P
Manufacturer Website Addresshttp://www.atdec.com.au
ManufacturerAtdec Pty Ltd
Product NameDual Swing Arm Mount
Brand NameAtdec
Product Information
Device SupportedDisplay
Flat Panel Display
Mini PC
Monitor
Curved Screen Display
FeaturesErgonomic
Cable Management
Pan
Quick Release Mechanism
Rotate
Swing
Tilt
Lightweight
Durable
Adjustable
Adjustable Angle
Articulating
Maximum Load Capacity15.97 kg
Maximum Screen Size Supported68.6 cm (27")
Number of Displays Supported2
Maximum Tilt Angle70°
Minimum Load Capacity5.44 kg
Height AdjustableYes
Minimum Rotate Angle180°
Maximum Rotate Angle360°
Physical Characteristics
Weight (Approximate)3 kg
Form FactorDesk
VESA Mount CompatibleYes
Mounting Pattern75 x 75
100 x 100
Product ColorPolished
Color FamilyOther
Product MaterialAluminium

Price Trend

Current Price
AUD 343.00
