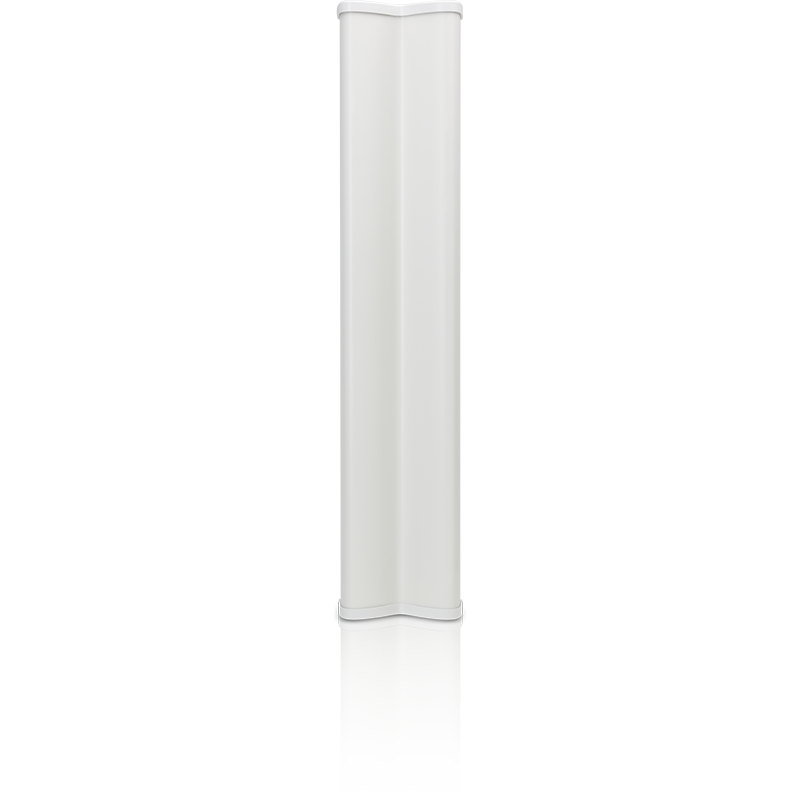

AM-2G15-120
Product Overview
| AM-2G15-120 | |
|---|---|
| Dimensions | 700 x 145 x 93 mm (27.6 x 5.7 3.7") |
| Weight | 4 kg (8.8 lb) |
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N @ 160 km/h (24 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Technical Specifications
| AM-2G15-120 | |
|---|---|
| Dimensions | 700 x 145 x 93 mm (27.6 x 5.7 3.7") |
| Weight | 4 kg (8.8 lb) |
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N @ 160 km/h (24 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
