Rack ATS G3 230V 32A IEC 309 in (16) C13
Rack ATS G3 230V 32A IEC 309 in (16) C13
Product Overview

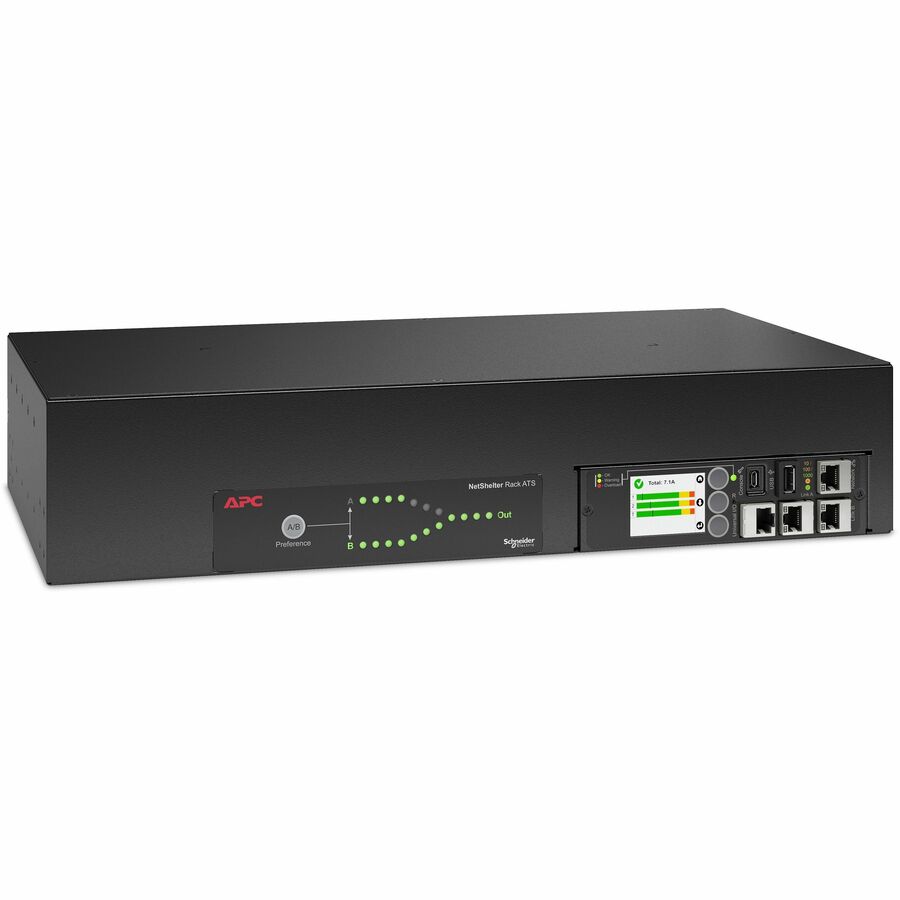

APC by Schneider Electric NetShelter Automatic Transfer Switch - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 32 A
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.Technical Specifications
Technical Information
Cord Length | 2438.40 mm |
Power Description
Input Voltage | 230 V AC |
Current | 32 A |
Miscellaneous
Mercury Free | Yes |
Green Premium | Yes |
Product Take Back Program | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4424A_ROHS_DECLARATION&p_FileName=AP4424AKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241358&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241358&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN |
REACH free of SVHC | No |
Toxic Heavy Metal Free | Yes |
Lead Free | Yes |
California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov" |
WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
General Information
Product Type | Automatic Transfer Switch |
Manufacturer Part Number | AP4424A |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | NetShelter Automatic Transfer Switch |
Product Line | NetShelter |
Brand Name | APC by Schneider Electric |
Physical Characteristics
Weight (Approximate) | 6.94 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 88 mm |
Width | 432 mm |
Depth | 236 mm |
Product Color | Black |
Color Family | Black |
Price Trend
Current Price
AUD 2,375.00
