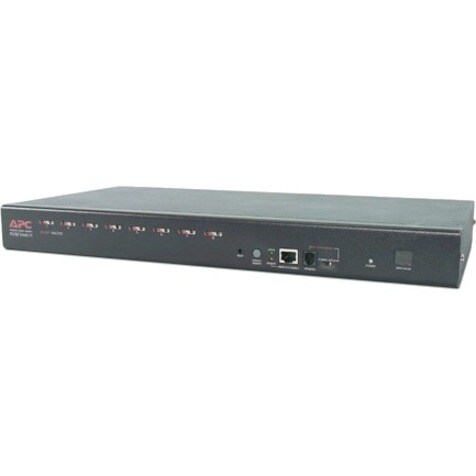

APC 8 Port Multi-Platform Analog KVM

APC 8 Port Multi-Platform Analog KVM

APC 8 Port Multi-Platform Analog KVM

Product Overview

APC by Schneider Electric AP5201 KVM Switchbox - 8 Computer(s) - 1 Local User(s) - 1920 x 1440 - 1U - Rack-mountable

The KVM Switch can connect up to 32 switches to provide direct control of 16 computers or control of up to 512 computers through serial connections, using only one keyboard, monitor, and mouse. Automatic scanning feature, Cascading Capabilities, Hot Pluggable Operation, Keep Alive function, Microsoft Intellimouse support, Occupies 1U of rack space, On-Screen Display (OSD) capability, PC mouse/keyboard/video support, Powder coat paint finish, Status Indicator LEDs

Technical Specifications

Video
Maximum Video Resolution1920 x 1440
Physical Characteristics
Rack Height1U
Product ColorBlack
General Information
Product TypeKVM Switchbox
Manufacturer Part NumberAP5201
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product ModelAP5201
Product Name8 Port Multi-Platform Analog KVM Switch
Brand NameAPC by Schneider Electric
Technical Information
Number of Computers Supported8
Number of Local Users Supported1
Miscellaneous
Additional Information
    • The keep-alive feature assures all the keyboard and mouse connections work properly if the KVM Switch loses power temporarily.
    • Auto-sensing of KVM station positions for serially-connected installations, which are indicated on the front panel LED.
    • Port names automatically reconfigure when the station sequence is changed.
    • No software is required; select a computer by using the On-Screen Display (OSD) menu or Hot Key combination.
    • AutoScan offers monitoring of connected computers.
Package Contents
  • 1 x KVM Switch AP5201 (8 port)
  • 1 x Configuration cable
  • 1 x L5-15 to IEC power cable
  • 2 x Brackets for a 19-inch enclosure
  • 1 x Installation Manual
  • 1 x KVM Switch Utility CD
  • 1 x Warranty card
Compatibility
    • Microsoft Intellimouse
    • Microsoft Intellimouse explorer
    • Logitech FirstMouse+
Platform SupportedPC
Certifications & Standards
    • FCC Part 15 Class A
    • ICES Class A: Canadian ICES-003
    • VCCI Class A
    • AS/NZS 3548 (C-Tick) Class A
    • ICES-003
    • IEC 60950
    • UL 60950
