RACK PDU. BASIC. VERTICAL. 220-240V. 32A
RACK PDU. BASIC. VERTICAL. 220-240V. 32A
Product Overview

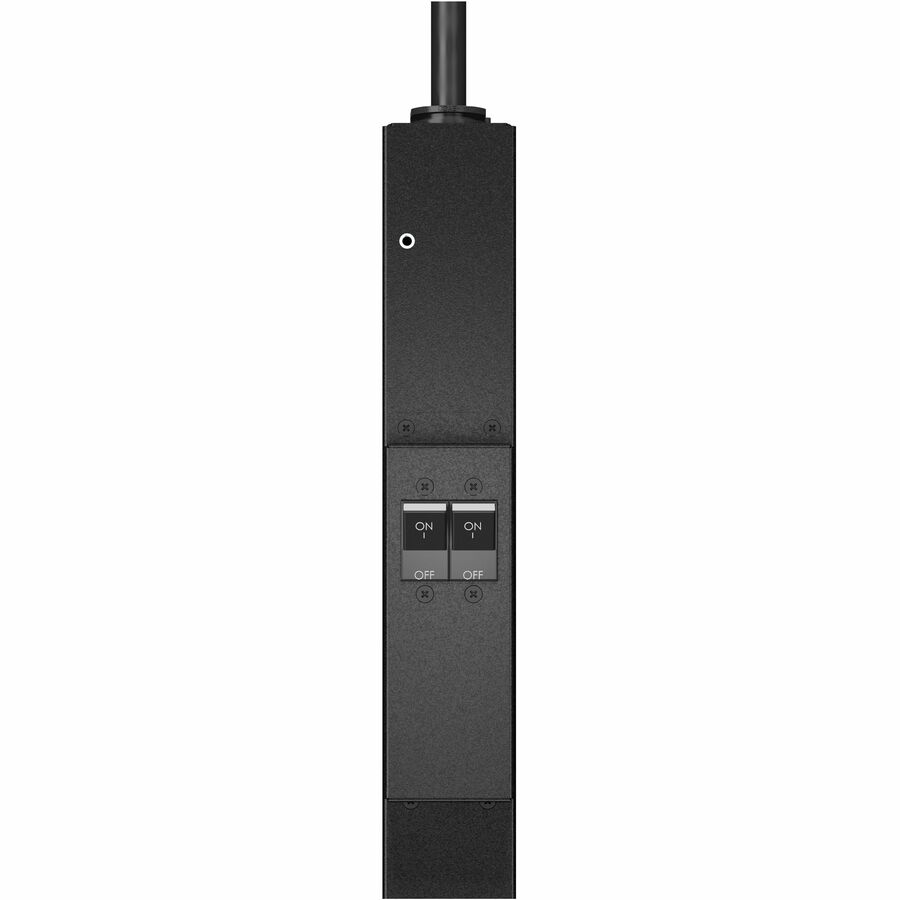

APC by Schneider Electric NetShelter AP6009A PDU - Basic - IEC 60309 32A 2P+E - 20 x IEC 60320 C13, 6 x IEC 60320 C19 - 32 A - 230 V Input - 230 V AC Output - 7.70 kW - 0U - 3.05 m Cord Length - Rack-mountable
Reliable rack power distributionTechnical Specifications
Power Description
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
Technical Information
| Plug/Connector Type | IEC 60309 32A 2P+E |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP6009A |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | AP6009A |
| Product Name | Basic Rack PDU AP6009A |
| Product Line | NetShelter |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
Physical Characteristics
| Weight (Approximate) | 6.18 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 3.05 m |
| Height | 1626 mm |
| Width | 56 mm |
| Depth | 43 mm |
Miscellaneous
| Environmentally Friendly | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562833&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562833&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Price Trend
Current Price
AUD 1,050.00
