Rack PDU. Basic. 0U/1U. 100-240V/20A. 22
Rack PDU. Basic. 0U/1U. 100-240V/20A. 22
Product Overview

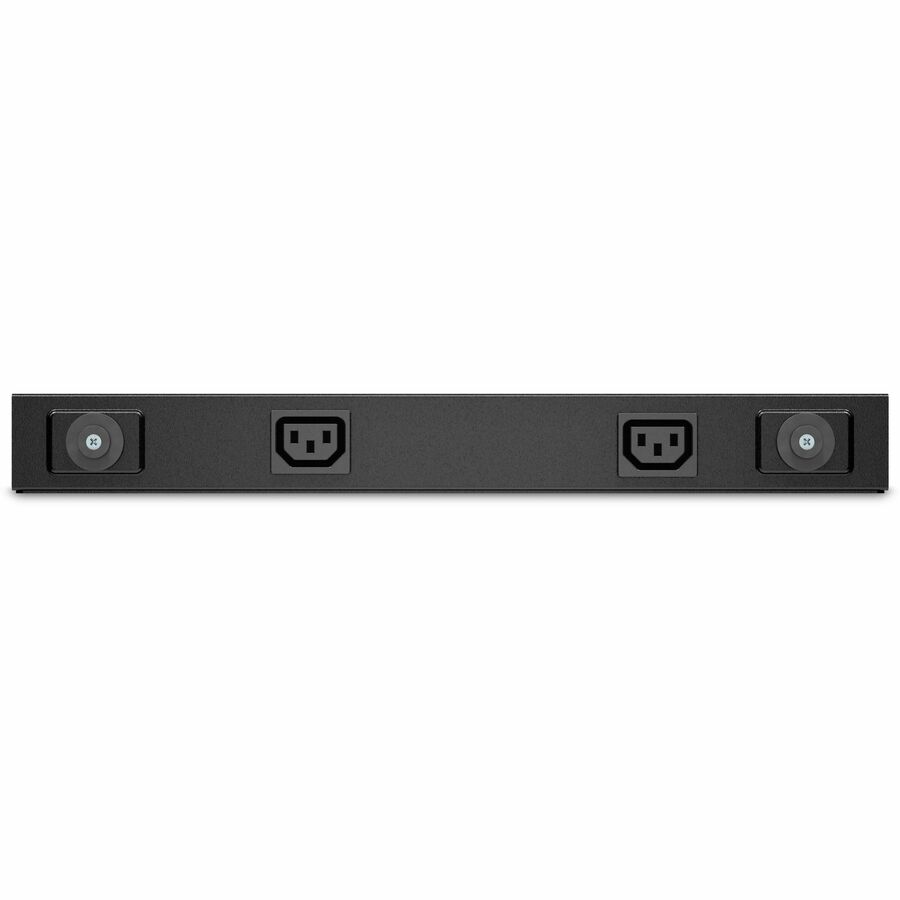

APC by Schneider Electric NetShelter AP6020A PDU - Basic - IEC 60320 C20 - 13 x IEC 60320 C13 - 16 A - 100 V, 120 V, 200 V, 208 V, 230 V, 240 V Input - 120 V AC, 230 V AC Output - 1U - Rack-mountable
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.Technical Specifications
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 13 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 1.50 kg |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 388 mm |
| Width | 44 mm |
| Depth | 93 mm |
| Mounting Preference | Lower |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP6020A |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | AP6020A |
| Product Name | Basic Rack PDU AP6020A |
| Product Line | NetShelter |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 208 V |
| 230 V | |
| 240 V | |
| 100 V | |
| 120 V | |
| 200 V | |
| Output Voltage | 120 V AC |
| 230 V AC | |
| Input Current | 16 A |
Miscellaneous
| Environmentally Friendly | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562835&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562835&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
