RACK PDU. METERED. 1U. 16A. 208/230V. (8
RACK PDU. METERED. 1U. 16A. 208/230V. (8
Product Overview

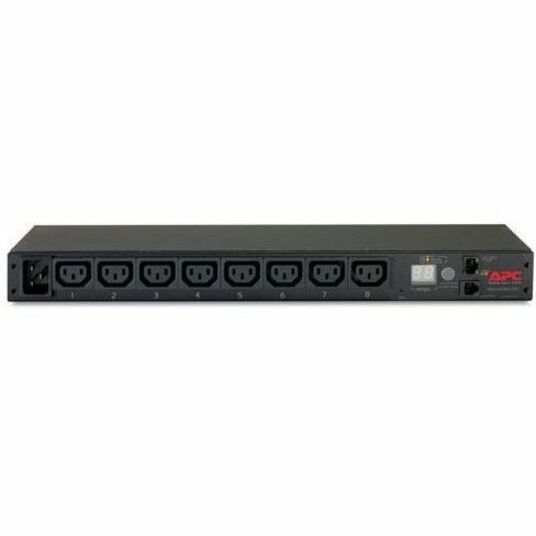

APC by Schneider Electric PDU - Metered - IEC 60320 C20 - 8 x IEC 60320 C13 - 20 A - 200 V, 208 V, 230 V Input - 208 V AC Output - 1U Network (RJ-45) - 2.50 m Cord Length - Rack-mountable
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Management
| Management |
|
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Metered |
| Receptacle Detail | 8 x IEC 60320 C13 |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7821B_ROHS_DECLARATION&p_FileName=AP7821BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562848&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562848&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP7821B |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13 |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 208 V |
| 230 V | |
| 200 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| Input Current | 20 A |
Physical Characteristics
| Weight (Approximate) | 1.74 kg |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 2.50 m |
| Height | 44 mm |
| Width | 444 mm |
| Depth | 102 mm |
Price Trend
Current Price
AUD 1,025.00
