RACK PDU. SWITCHED. 1U. 12A/208V. 10A/23

RACK PDU. SWITCHED. 1U. 12A/208V. 10A/23

RACK PDU. SWITCHED. 1U. 12A/208V. 10A/23

Product Overview

APC by Schneider Electric PDU - Switched - IEC 60320 C14 - 8 x IEC 60309 C13 - 15 A - 200 V, 208 V, 230 V Input - 208 V AC Output - 2.30 kW - 1U - 1.98 m Cord Length - Rack-mountable

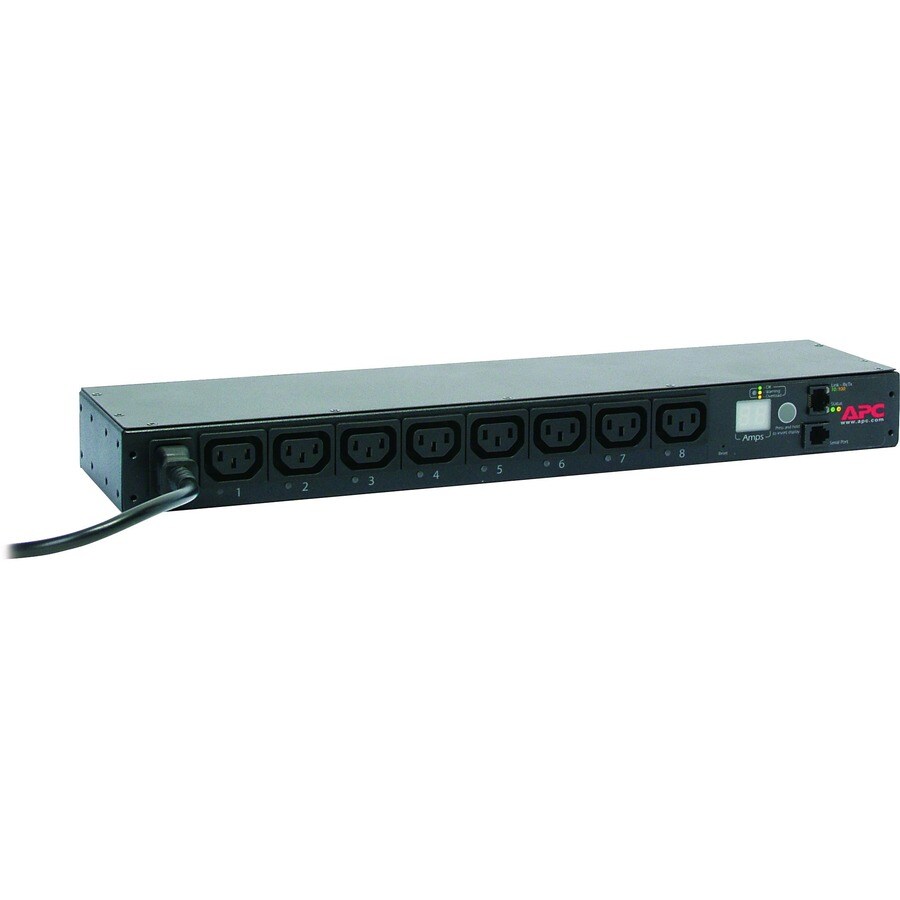

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Technical Specifications

Technical Information
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60309 C13
PDU TypeSwitched
Receptacle Detail8 x IEC 60309 C13
Plug/Connector Detail1 x IEC 60320 C14
General Information
Product TypePDU
Manufacturer Part NumberAP7920B
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameRack PDU, Switched, 1U, 12A/208V, 10A/230V, (8)C13
Brand NameAPC by Schneider Electric
Physical Characteristics
Weight (Approximate)2.27 kg
Mount TypeRack-mountable
Rack Height1U
Cord Length1.98 m
Height44 mm
Width445 mm
Depth108 mm
Power Description
Input Voltage200 V
208 V
230 V
Output Voltage208 V AC
230 V AC
Input Current15 A
Miscellaneous
Environmentally FriendlyYes
Mercury FreeYes
Green PremiumYes
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7920B_ROHS_DECLARATION&p_FileName=AP7920BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562851&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562851&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
REACH free of SVHCNo
California Proposition 65 WarningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Price Trend

Current Price
AUD 1,775.00
