RACK PDU. SWITCHED. 2U. 32A. 230V. (16)C

RACK PDU. SWITCHED. 2U. 32A. 230V. (16)C

RACK PDU. SWITCHED. 2U. 32A. 230V. (16)C

Product Overview

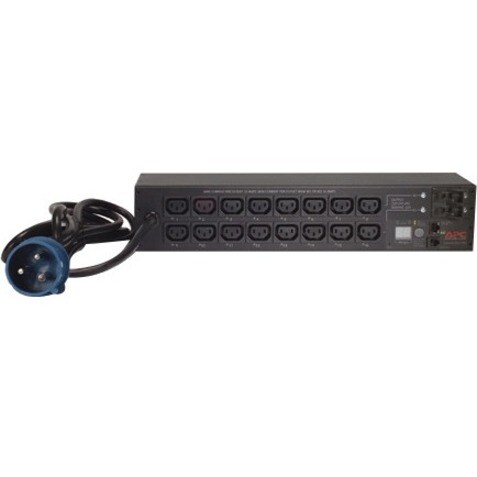

APC by Schneider Electric NetShelter PDU - Switched - IEC 60309 (2P+E) 32A - 16 x IEC 60320 C13 - 32 A - 230 V AC Input - 230 V AC Output - 7.36 kW - 2U - Rack-mountable

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

Technical Specifications

Miscellaneous
Package Contents
  • Rack PDU, Switched, 2U, 32A, 230V, (16)C13
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
Environmentally FriendlyYes
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current32 A
General Information
Product TypePDU
Manufacturer Part NumberAP7922B
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameRack PDU, Switched, 2U, 32A, 230V, (16)C13
Product LineNetShelter
Product SeriesSwitched
Brand NameAPC by Schneider Electric
Technical Information
Plug/Connector TypeIEC 60309 (2P+E) 32A
Receptacle TypeIEC 60320 C13
PDU TypeSwitched
Receptacle Detail16 x IEC 60320 C13
Plug/Connector Detail1 x IEC 60309 (2P+E) 32A
Physical Characteristics
Weight (Approximate)4.50 kg
Mount TypeRack-mountable
Rack Height2U
Height89 mm
Width445 mm
Depth114 mm

Price Trend

Current Price
AUD 2,125.00
