Product Overview

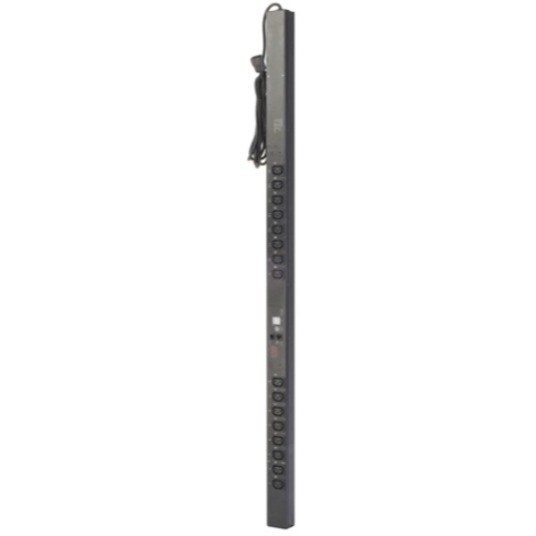

APC by Schneider Electric NetShelter PDU - Switched - IEC 60320 C14 - 16 x IEC 60320 C13 - 10 A - 230 V AC Input - 230 V AC Output - 0U - Rack-mountable

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

Technical Specifications

Management
Management
    • Web
    • SNMP
    • Telnet
Miscellaneous
Package Contents
  • Rack PDU, Switched, Zero U, 10A, 230V, (16) C13
  • Cord Retention Bracket(s)
  • Installation Guide
  • Rack Mounting Brackets
  • Toolless Mounting Kit
  • User Manual
Environmentally FriendlyYes
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current10 A
General Information
Product TypePDU
Manufacturer Part NumberAP7950B
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameRack PDU, Switched, Zero U, 10A, 230V, (16) C13
Product LineNetShelter
Product SeriesSwitched
Brand NameAPC by Schneider Electric
Technical Information
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60320 C13
PDU TypeSwitched
Receptacle Detail16 x IEC 60320 C13
Plug/Connector Detail1 x IEC 60320 C14
Physical Characteristics
Weight (Approximate)4.32 kg
Mount TypeRack-mountable
Rack Height0U
Height1245 mm
Width56 mm
Depth44 mm

Price Trend

Current Price
AUD 2,300.00
