Rack PDU 2G. Metered-by-Outlet. ZeroU. 1
Rack PDU 2G. Metered-by-Outlet. ZeroU. 1
Product Overview

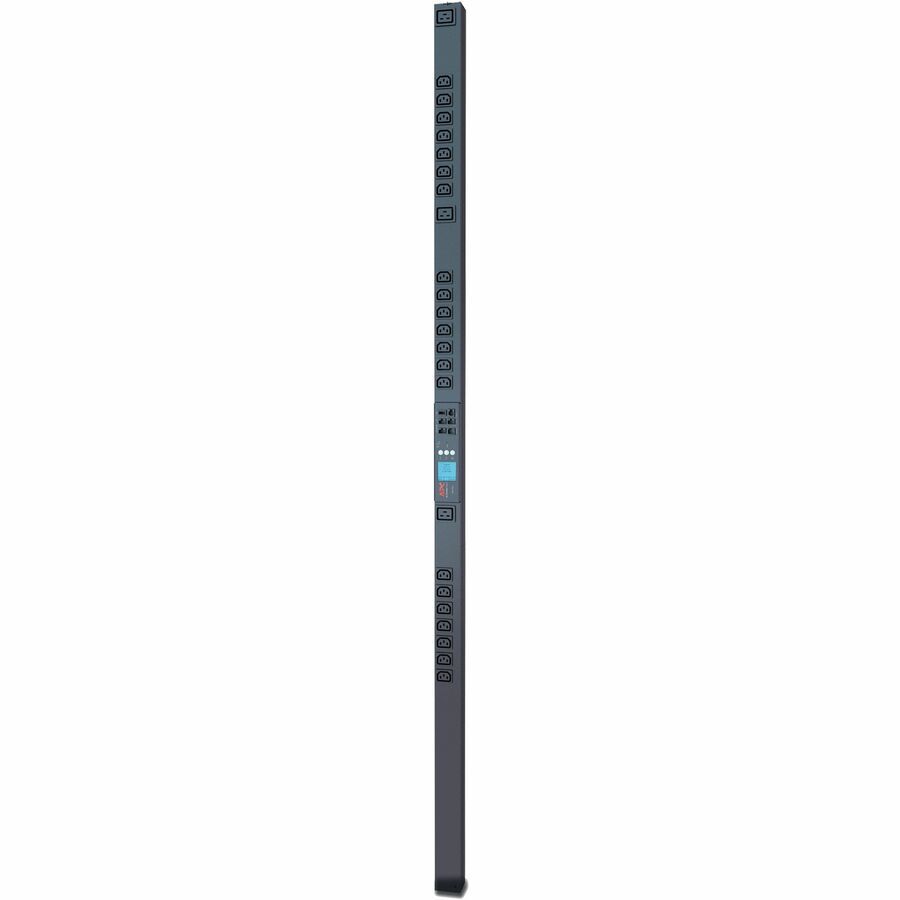

APC by Schneider Electric PDU - IEC 60320 C20 - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 20 A - 200 V, 208 V, 230 V Input - 200 V AC, 208 V AC Output - 0U - Rack-mountable
Metered-by-outlet Rack Power Distribution Units (Rack PDU) provide real-time remote monitoring at the outlet level to provide advanced data center energy management.Technical Specifications
Management
| Management |
|
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8459WW_ROHS_DECLARATION&p_FileName=AP8459WWKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134849&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134849&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP8459WW |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C13 & (3) C19 |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V |
| 208 V | |
| 200 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| 200 V AC | |
| Input Current | 20 A |
Physical Characteristics
| Weight (Approximate) | 6.08 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1829 mm |
| Width | 56 mm |
| Depth | 51 mm |
| Number of Cord/Cable | 1 |
| Product Color | Black |
| Color Family | Black |
