Rack PDU 2G. Metered by Outlet with Swit
Rack PDU 2G. Metered by Outlet with Swit
Product Overview
APC by Schneider Electric PDU - IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 400 V Input - 230 V AC Output - 11 kW - 0U - 1.83 m Cord Length
Metered-by-outlet Rack Power Distribution Units (Rack PDU) with Switching provide real-time energy management and on/off control at the outlet level to provide advanced data center energy management.
Technical Specifications
Power Description
| Input Voltage | 400 V |
| Output Voltage | 230 V AC |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8681_ROHS_DECLARATION&p_FileName=AP8681KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194458&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194458&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP8681 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Metered-by-Outlet Rack 24-Outlets 11kW PDU |
| Brand Name | APC by Schneider Electric |
Physical Characteristics
| Weight (Approximate) | 8.23 kg |
| Rack Height | 0U |
| Cord Length | 1.83 m |
| Height | 1829 mm |
| Width | 56 mm |
| Depth | 51 mm |
Technical Information

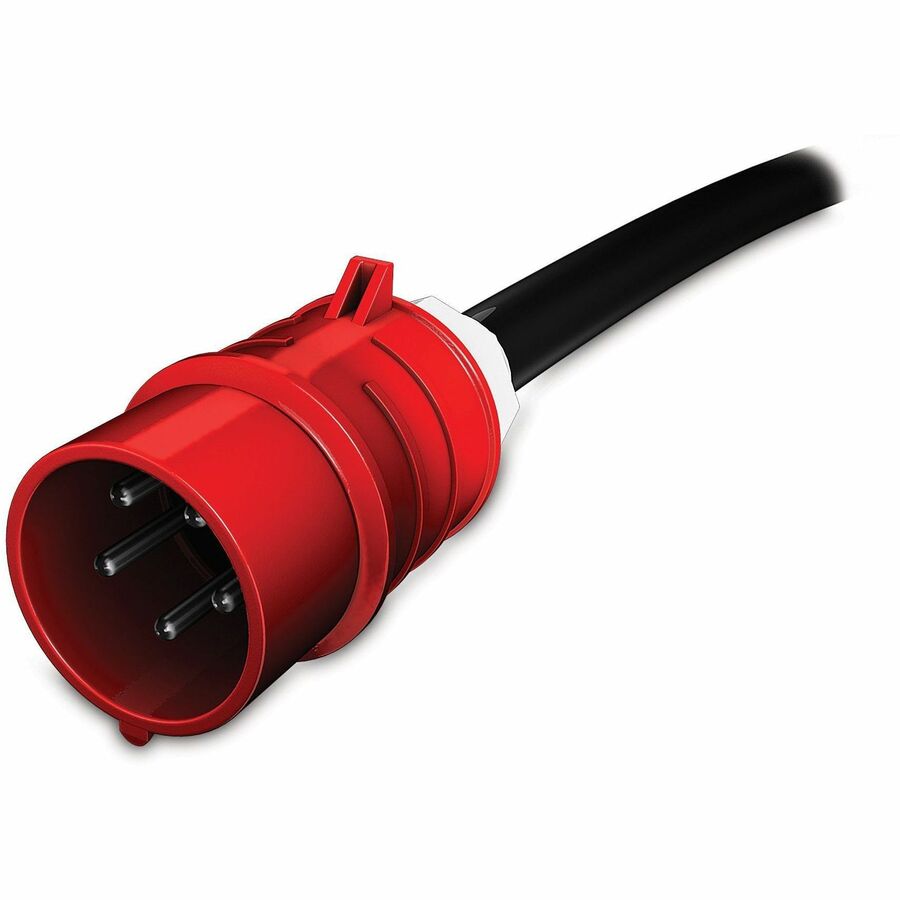

| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| IEC 60309 16A 3P+N+PE | |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 |
