RACK PDU 2G METERED ZEROU 32A 230V CLIPS

RACK PDU 2G METERED ZEROU 32A 230V CLIPS

RACK PDU 2G METERED ZEROU 32A 230V CLIPS

Product Overview

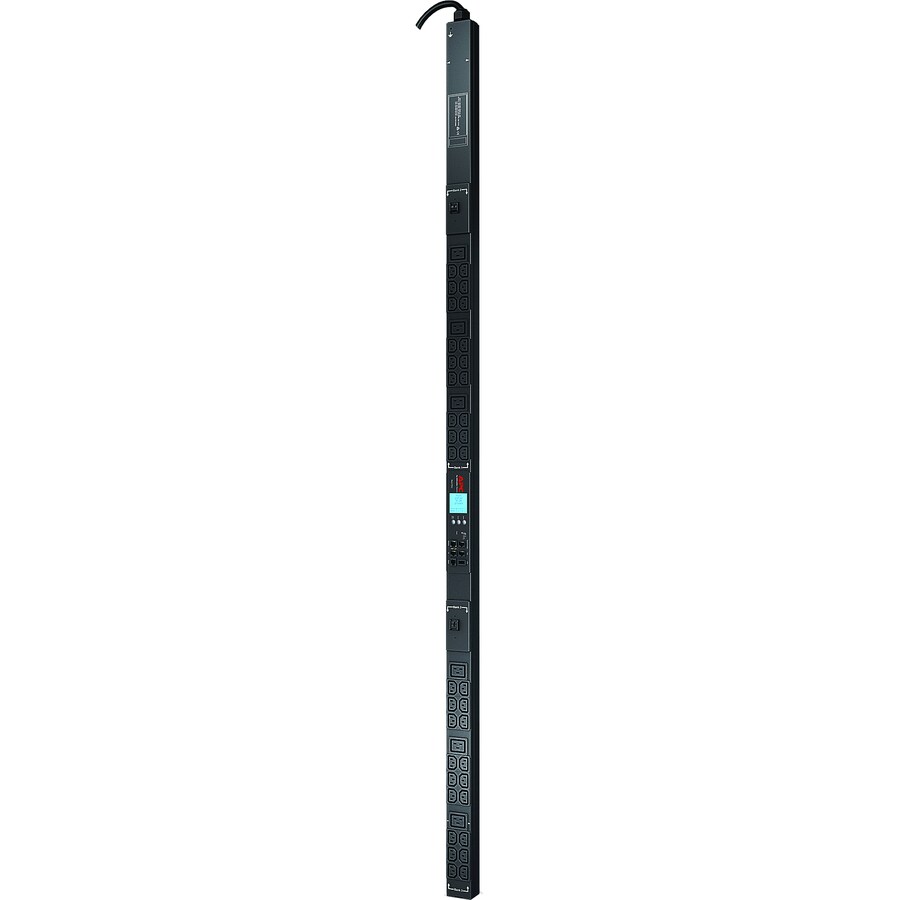

APC by Schneider Electric NetShelter PDU - Clipsal 32A 56P332 - 36 x IEC 60320 C13, 6 x IEC 60320 C19 - 32 A - 230 V AC Input - 230 V AC Output - 0U - 3 m Cord Length - Horizontal/Vertical - Rack-mountable

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare software suite.

Technical Specifications

Interfaces/Ports
Serial PortYes
Management
Management
    • Web
    • SNMP
    • Telnet
Miscellaneous
Package Contents
  • Metered Rack 42-Outlets PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Serial Configuration Cable
Certifications & StandardsVDE
Environmentally FriendlyYes
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current32 A
General Information
Product TypePDU
Manufacturer Part NumberAP8853X678
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameMetered Rack 42-Outlets PDU
Product LineNetShelter
Product SeriesMetered
Brand NameAPC by Schneider Electric
Technical Information
Protection TypeOverload Protection
Plug/Connector TypeClipsal 32A 56P332
Receptacle TypeIEC 60320 C13
IEC 60320 C19
Receptacle Detail6 x IEC 60320 C19
36 x IEC 60320 C13
Physical Characteristics
Weight (Approximate)6.93 kg
Mount TypeRack-mountable
Rack Height0U
Cord Length3 m
Height1791 mm
Width56 mm
Depth44 mm
Number of Cord/Cable1
Mounting OrientationHorizontal/Vertical

Price Trend

Current Price
AUD 1,925.00
