Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)
Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)
Product Overview
APC by Schneider Electric NetShelter PDU - Metered - 30 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC Output - 22 kW - Overload Protection - Rack-mountable
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Technical Specifications
| Management |
Protocols: |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 22 kW |

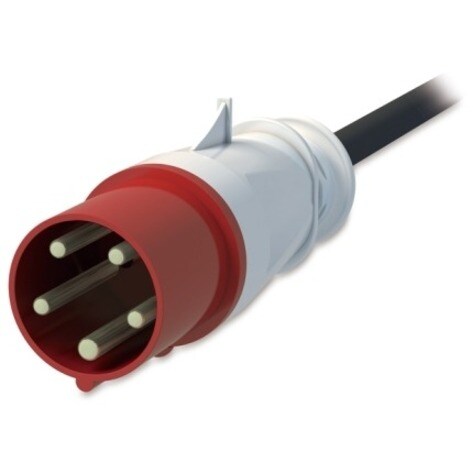

| Additional Information | Input Connection: IEC 309 32A 3P+N+E |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Protection Type | Overload Protection |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 30 x IEC 60320 C13 |
| 12 x IEC 60320 C19 |
| Weight (Approximate) | 8.72 kg |
| Mount Type | Rack-mountable |
| Height | 1829 mm |
| Width | 56 mm |
| Depth | 51 mm |
| Product Type | PDU |
| Manufacturer Part Number | AP8886 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Metered Rack 42-Outlets PDU |
| Product Line | NetShelter |
| Product Series | Metered |
| Brand Name | APC by Schneider Electric |
