Rack PDU 2G. Switched. ZeroU. 16A. 230V.

Rack PDU 2G. Switched. ZeroU. 16A. 230V.

Rack PDU 2G. Switched. ZeroU. 16A. 230V.

Product Overview

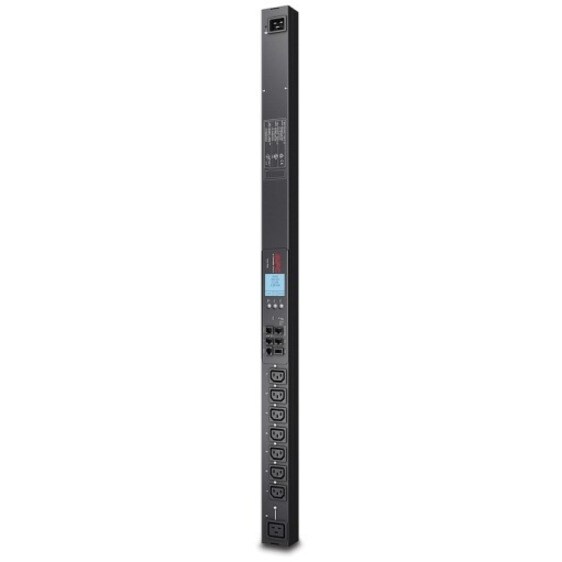

APC by Schneider Electric NetShelter AP8958EU3 PDU - Switched - 1 x IEC 60320 C19 - 230 V AC Input - 200 V AC, 208 V AC Output - Rack-mountable

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

Technical Specifications

Management
Management

    Protocols:

    • Web
    • SNMP
    • Telnet
    • Command Line Interface
Miscellaneous
Additional Information

Input Receptacle: IEC 309 16A 2P+E

Package Contents
  • Switched Rack AP8958EU3 8-Outlets PDU
  • Installation Guide
  • Locking Input Power Cord
  • Rack Mounting Brackets
  • Safety Guide
  • Sample Locking IEC Power Cord
  • Serial Configuration Cable
Environmentally FriendlyYes
Power Description
Input Voltage230 V AC
Output Voltage200 V AC
230 V AC
208 V AC
Input Voltage Range200 V AC - 230 V AC
Physical Characteristics
Weight (Approximate)3.23 kg
Mount TypeRack-mountable
Height988 mm
Width56 mm
Depth46 mm
Number of Cord/Cable1
Technical Information
Receptacle TypeIEC 60320 C13
IEC 60320 C19
PDU TypeSwitched
Receptacle Detail1 x IEC 60320 C19
7 x IEC 60320 C13
General Information
Product TypePDU
Manufacturer Part NumberAP8958EU3
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product ModelAP8958EU3
Product NameSwitched Rack AP8958EU3 8-Outlets PDU
Product LineNetShelter
Product SeriesSwitched
Brand NameAPC by Schneider Electric

Price Trend

Current Price
AUD 2,225.00
