RACK PDU.BASIC. 1U. 16A.208230V. (10)C1
RACK PDU.BASIC. 1U. 16A.208230V. (10)C1
Product Overview

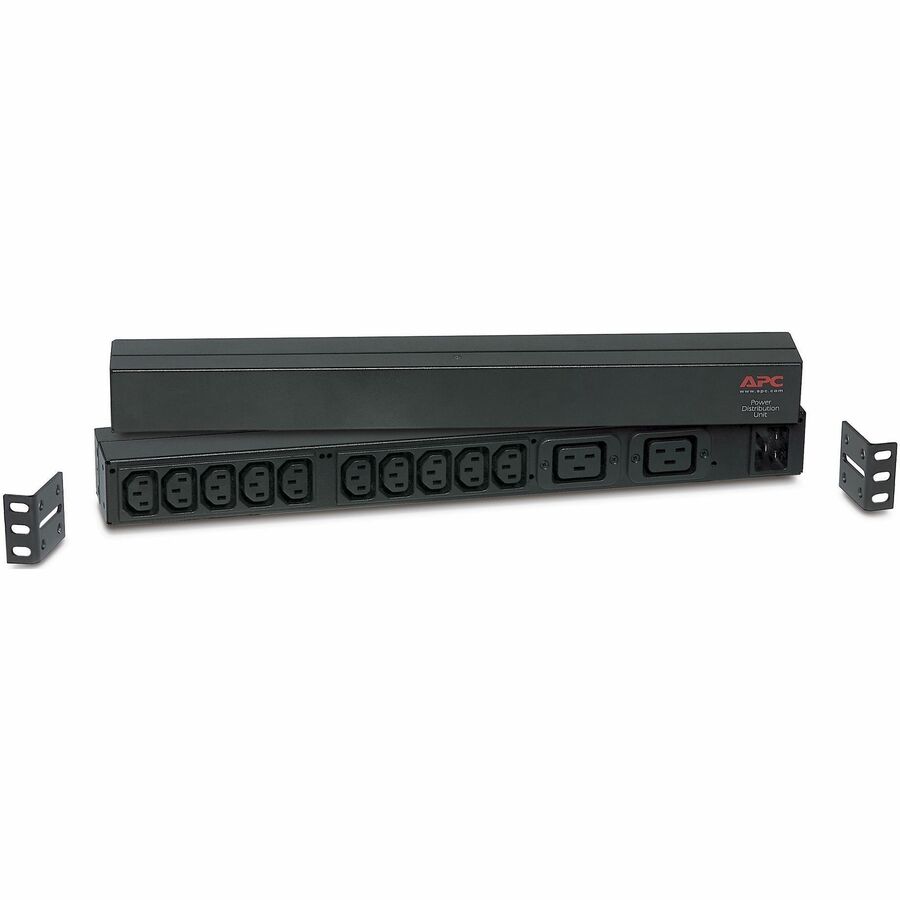

APC by Schneider Electric NetShelter PDU - Basic - IEC 60320 C20 - 10 x IEC 60320 C13, 2 x IEC 60320 C19 - 16 A - 120 V, 208 V, 230 V Input - 120 V AC, 208 V AC Output - 3.68 kW - 1U - 2.50 m Cord Length - Horizontal - Rack-mountable
Reliable rack power distributionTechnical Specifications
Warranty
| Parts Warranty/Labor | 2 Year |
Environmental Conditions
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 45°C |
| Minimum Storage Temperature | -25°C |
| Maximum Storage Temperature | 65°C |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 95% |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP9559 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 / Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 12-Outlets PDU |
| Product Line | NetShelter |
| Brand Name | APC by Schneider Electric |
Miscellaneous
| Additional Information |
|
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759556&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759556&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Load Capacity (VA) | 3.68 kW |
| PDU Type | Basic |
| Receptacle Detail | 10 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
Power Description
| Input Voltage | 208 V |
| 120 V | |
| 230 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| 120 V AC | |
| Input Current | 16 A |
| Input Voltage Range | 90 V AC - 250 V AC |
| Input Frequency | 60 Hz |
Physical Characteristics
| Weight (Approximate) | 979.8 g |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 2.50 m |
| Height | 44 mm |
| Width | 447 mm |
| Depth | 57 mm |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
Price Trend
Current Price
AUD 799.00
