Rack PDU. Basic. 1U. 16A. 208/230V. (12)
Rack PDU. Basic. 1U. 16A. 208/230V. (12)
Product Overview

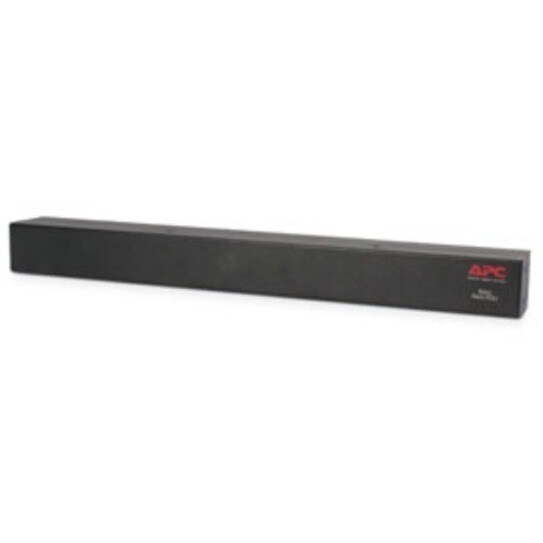

APC by Schneider Electric NetShelter PDU - Basic - IEC 60320 C20 - 12 x IEC 60320 C13 - 200 V, 208 V, 230 V Input - 208 V AC Output - 3.68 kW - 1U - 2.50 m Cord Length - Rack-mountable
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.Technical Specifications
Warranty
| Parts Warranty/Labor | 2 Year |
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 12 x IEC 60320 C13 |
Power Description
| Input Voltage | 200 V |
| 230 V | |
| 208 V | |
| Output Voltage | 208 V AC |
| 230 V AC | |
| Input Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 3.68 kVA |
Physical Characteristics
| Weight (Approximate) | 2.05 kg |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 2.50 m |
| Height | 44 mm |
| Width | 447 mm |
| Depth | 57 mm |
| Product Color | Black |
| Color Family | Black |
General Information
| Product Type | PDU |
| Manufacturer Part Number | AP9565 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 3.68kVA PDU |
| Product Line | NetShelter |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759568&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759568&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Price Trend
Current Price
AUD 449.00
