Rack PDU 9000 Switched ZeroU 32A 230V C1
Rack PDU 9000 Switched ZeroU 32A 230V C1
Product Overview
APC by Schneider Electric NetShelter PDU - Switched - IEC 60309 32A 2P+E - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 32 A - 230 V AC Input - Overload Protection, Circuit Protection - 0U Network (RJ-45) - Horizontal/Vertical/Toolless - Rack-mountable - Tower
With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Technical Specifications
| Network (RJ-45) | Yes |
| Management |
|
| Input Voltage | 230 V AC |
| Input Current | 32 A |
| Power Rating (VA) | 7.40 kVA |
| Power Rating (Watt) | 17.30 kW |
| Protection Type | Circuit Protection |
| Overload Protection | |
| Accidental Power Shutdown | |

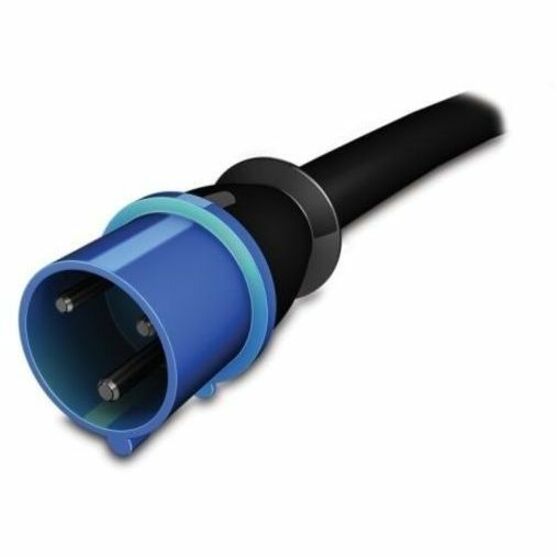

| Plug/Connector Type | IEC 60309 32A 2P+E |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Receptacle Detail | 3 x IEC 60320 C19 |
| 21 x IEC 60320 C13 | |
| Plug/Connector Detail | 1 x IEC 60309 32A 2P+E |
| Product Type | PDU |
| Manufacturer Part Number | APDU9953 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19 |
| Product Line | NetShelter |
| Product Series | Switched |
| Brand Name | APC by Schneider Electric |
| Weight (Approximate) | 7.34 kg |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1829.1 mm |
| Width | 55.9 mm |
| Depth | 46 mm |
| Mounting Orientation | Horizontal/Vertical/Toolless |
