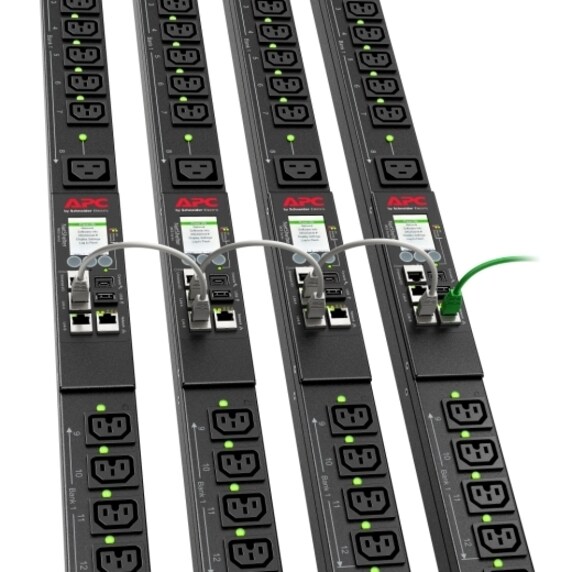

Rack PDU 9000 Switched ZeroU 16A 230V C1

Rack PDU 9000 Switched ZeroU 16A 230V C1

Rack PDU 9000 Switched ZeroU 16A 230V C1

Product Overview

APC by Schneider Electric NetShelter PDU - Switched - IEC 60309 (2P+E) 16A - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - Overload Protection, Circuit Protection - 0U - Horizontal/Vertical/Toolless - Rack-mountable - Tower

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.

Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.

Technical Specifications

Management
Management
    • Web
    • SNMP
    • Telnet
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Input Current16 A
Input Voltage Range220 V AC - 240 V AC
Power Rating (VA)3.70 kVA
Technical Information
Protection TypeCircuit Protection
Overload Protection
Plug/Connector TypeIEC 60309 (2P+E) 16A
Receptacle TypeIEC 60320 C13
IEC 60320 C19
PDU TypeSwitched
Locking ReceptaclesCord Retention Bracket
Receptacle Detail21 x IEC 60320 C13
3 x IEC 60320 C19
Plug/Connector Detail1 x IEC 60309 (2P+E) 16A
General Information
Product TypePDU
Manufacturer Part NumberAPDU9959EU3
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameRack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord
Product LineNetShelter
Product SeriesSwitched
Brand NameAPC by Schneider Electric
Physical Characteristics
Weight (Approximate)5.61 kg
Form FactorTower
Mount TypeRack-mountable
Rack Height0U
Height1794 mm
Width55.1 mm
Depth46 mm
Mounting OrientationHorizontal/Vertical/Toolless
