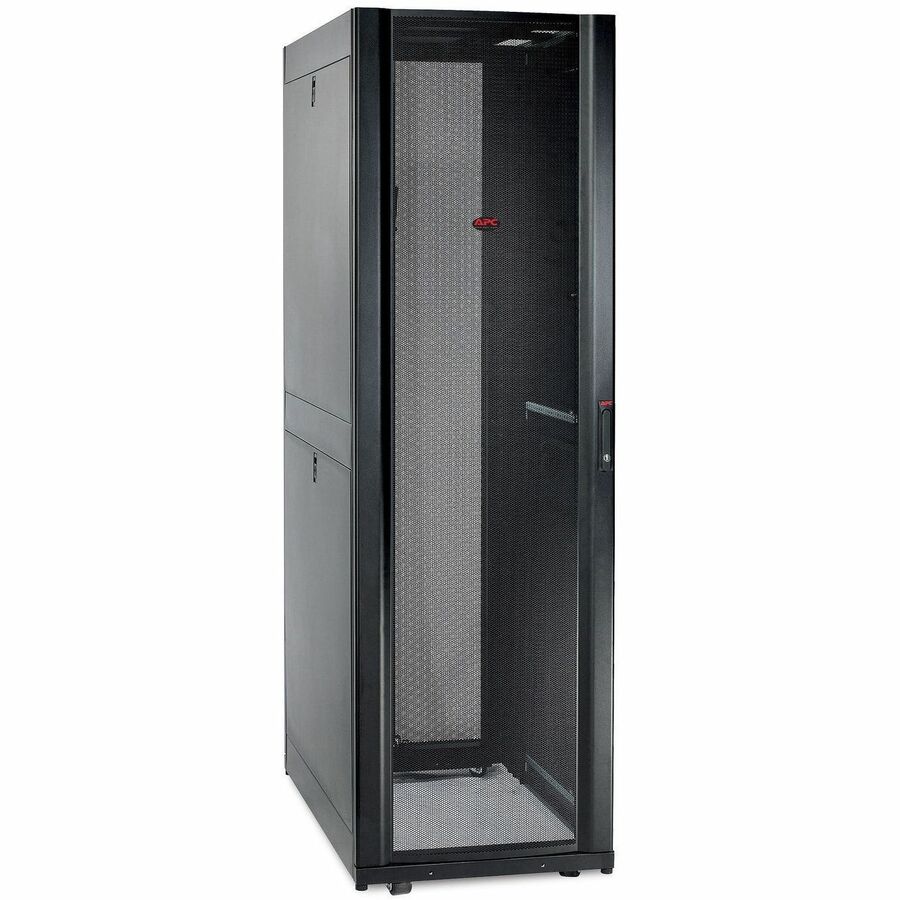

APC NetShelter SX 42U Server Rack Enclos

APC NetShelter SX 42U Server Rack Enclos

APC NetShelter SX 42U Server Rack Enclos

Product Overview

APC by Schneider Electric NetShelter 42U Enclosed Cabinet Rack Cabinet for Storage, Server - 482.60 mm Rack Width - Black - 1020.58 kg Dynamic/Rolling Weight Capacity - 1700.97 kg Static/Stationary Weight Capacity

Reliable IT enclosures with essential functionality and features to meet the most requirements and applications of rack-mount IT equipment in variety of IT environments. Ready for medium to high density environments. An industry standard server rack with height designed to easily fit through standard doorways.

  • Rack Cabinet allows you to effectively utilise most of the space available with maximum dependability
  • Storage application, usage offers maximum items, valuables, equipment organisational, storage, placement reliability
  • Comes in black colour for a sophisticated and dassling loo
  • Adjustable Mounting Rails feature for better items, valuables, equipment organisational, storage, placement reliance

Technical Specifications

Technical Information
Application/UsageStorage
Server
FeaturesLeveling Feet
Adjustable Mounting Rails
Rack TypeEnclosed Cabinet
Mounting PreferenceNo Preference
Physical Characteristics
Weight (Approximate)125.09 kg
Units Per Pallet1
Rack Width482.60 mm
Rack Height42U
Height1991 mm
Width600 mm
Depth1070 mm
Rail Material Gauge14
Door Material Gauge18
Roof/Top Material Gauge18
Side Panel Material Gauge18
Static/Stationary Weight Capacity1700.97 kg
Dynamic/Rolling Weight Capacity1020.58 kg
Product ColorBlack
Color FamilyBlack
General Information
Product TypeRack Cabinet
Manufacturer Part NumberAR3100
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameNetShelter SX Deep Rack Enclosure With Sides
Product LineNetShelter
Brand NameAPC by Schneider Electric
Miscellaneous
Additional Information
    • Adjustable Front Vertical Mounting Rail
    • Adjustable mounting depth
    • Cable Access
    • Deep form factor (42"/1070mm)
    • Door ventilation exceeds 830 in2 (5355 cm2)
    • Expanded Cable Management
    • Facilitates overhead cable management
    • Facilitates overhead power distribution
    • Facilitates rear/vertical cable management
    • Mounts two APC metered PDUs in one rear channel
    • Multi-vendor equipment compatibility
    • Numbered U positions
    • Optimized depth
    • Protective grounding provisions
    • Provides Mounting Option for PDUs
    • Provides security between enclosures when bayed together
    • Quick release doors
    • Quick release side panels
    • Removable doors and side panels
    • Reversible doors
    • Rolls through a 2 meter doorway
    • Ships fully assembled
    • Split rear doors
    • Supports 24 inch floor tile spacing
    • Supports 600 mm floor tile spacing
    • Tool-less mounting
    • UBC Zone 4 stabilization provisions
    • Ventilated Doors with Scalable Cooling Options
    • Vertical Mounting Rails with square holes
Package Contents
  • NetShelter SX 42U Deep Rack Enclosure With Sides
  • Casters
  • Doors
  • Ground Studs
  • Installation Guide
  • Leveling feet
  • Mounting Hardware
  • Roof
  • Side Panels
Compatibility2/4U Servers
Green PremiumYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3100_ROHS_DECLARATION&p_FileName=AR3100KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760020&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760020&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHCYes

Price Trend

Current Price
AUD 3,886.36
