NetShelter SX 42U 750mm Wide x 1070mm De

NetShelter SX 42U 750mm Wide x 1070mm De

NetShelter SX 42U 750mm Wide x 1070mm De

Product Overview

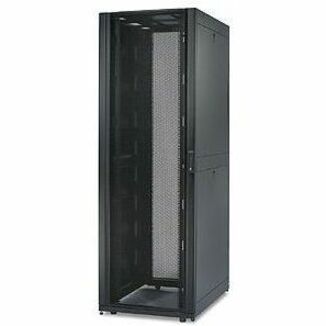

APC by Schneider Electric NetShelter 42U Enclosed Cabinet Rack Cabinet for Blade Server - 482.60 mm Rack Width - Black - 1020.58 kg Dynamic/Rolling Weight Capacity - 1360.78 kg Static/Stationary Weight Capacity

Our high-performance IT Rack for data centers, server rooms & wiring closets

  • Rack Cabinet allows you to effectively utilise most of the space available with maximum dependability
  • Blade Server application, usage for your items, valuables, equipment organisational, storage, placement convenience and ease
  • Comes in black colour to better suit your theme and style

Technical Specifications

Technical Information
Application/UsageBlade Server
Converged Infrastructure
Rack TypeEnclosed Cabinet
Mounting PreferenceNo Preference
Physical Characteristics
Weight (Approximate)155.96 kg
Units Per Pallet1
Rack Width482.60 mm
Rack Height42U
Height1991 mm
Width750 mm
Depth1070 mm
Rail Material Gauge14
Door Material Gauge18
Roof/Top Material Gauge18
Side Panel Material Gauge18
Static/Stationary Weight Capacity1360.78 kg
Dynamic/Rolling Weight Capacity1020.58 kg
Product ColorBlack
Color FamilyBlack
General Information
Product TypeRack Cabinet
Manufacturer Part NumberAR3150
Manufacturer Website Addresshttp://www.schneider-electric.com.au
Packaged Quantity1
ManufacturerSchneider Electric SA
Product NameNetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm
Product LineNetShelter
Brand NameAPC by Schneider Electric
Miscellaneous
Additional Information
    • Adjustable Front Vertical Mounting Rail
    • Adjustable mounting depth
    • Cable Access
    • Deep form factor (42"/1070mm)
    • Door ventilation exceeds 830 in2 (5355 cm2)
    • Expanded Cable Management
    • Facilitates overhead cable management
    • Facilitates overhead power distribution
    • Facilitates rear/vertical cable management
    • Mounts two APC metered PDUs in one rear channel
    • Multi-vendor equipment compatibility
    • Numbered U positions
    • Optimized depth
    • Protective grounding provisions
    • Provides Mounting Option for PDUs
    • Provides security between enclosures when bayed together
    • Quick release doors
    • Quick release side panels
    • Removable doors and side panels
    • Reversible doors
    • Rolls through a 2 meter doorway
    • Ships fully assembled
    • Split rear doors
    • Tool-less mounting
    • UBC Zone 4 stabilization provisions
    • Ventilated Doors with Scalable Cooling Options
    • Vertical Mounting Rails with square holes
    • Wide form factor (29.5"/750mm)
Package Contents
  • NetShelter SX 42U Rack Enclosure With Sides
  • Casters
  • Doors
  • Ground Studs
  • Installation Guide
  • Leveling feet
  • Mounting Hardware
  • Roof
  • Side Panels
Green PremiumYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3150_ROHS_DECLARATION&p_FileName=AR3150KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760068&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760068&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHCYes
