ASR920 Series - 12GE
ASR920 Series - 12GE
Product Overview

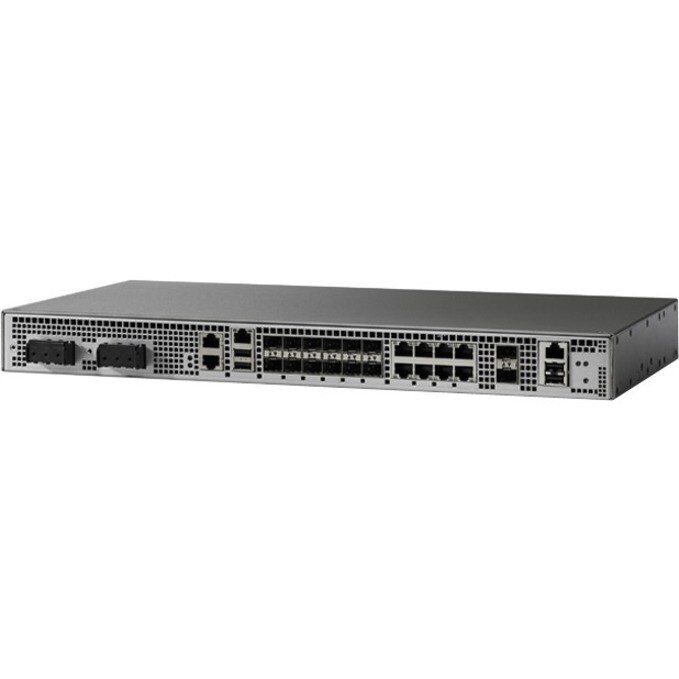

CISCO ASR920 SERIES - 12GE AND 4-10GE 1 IM SLOT
The Cisco ASR 920 Series Aggregation Services Router is a family of fixed configuration routers that provides common network architecture to the Service Providers for macro and small cell networks.
This router acts as an access device for mobile backhaul services-macro Cell Site Router (CSR) and Small Cell Router (SCR). As an access device, it provides capabilities like 1GE/10GE, MPLS, H-QoS, Services, GPS clocking, PoE and fit within ETSI 300 mm depth cabinet. It can easily be integrated into the Unified MPLS for Mobile Transport (UMMT) and Fixed Mobile Convergence (FMC) solution.
Cisco ASR 920 Router FeaturesThe router provides 1GE/10GE, MPLS, H-QoS, high availability hardware design, advanced Ethernet Operations, Administration, and Maintenance (OAM), as well as advanced timing support, including satellite timing (GNSS) based clocking, and PoE in one platform.
- ASR 920-Indoor version [ASR-920-12SZ-IM]-This router has fixed Ethernet interfaces (8x1G copper + 4x1G SFP + 4x10G/1G (dual rate)
- Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity
- Can be placed on desktop surfaces for standalone installation
- Features management port for a reliable networking
- With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
Technical Specifications
| Total Number of Expansion Slots | 4.0 |
| Compatible Rack Unit | 1U |
| Product Type | Router |
| Manufacturer Part Number | ASR-920-12SZ-IM |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | ASR-920-12SZ-IM |
| Product Name | ASR-920-12SZ-IM Router |
| Product Series | ASR 920 |
| Brand Name | Cisco |
| Powerline | No |
| Management Port | Yes |
| Total Number of Ports | 8 |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Network Technology | 100Base-FX |
| 1000Base-X | |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
