Cisco ASR920 Series

Cisco ASR920 Series

Cisco ASR920 Series

Product Overview

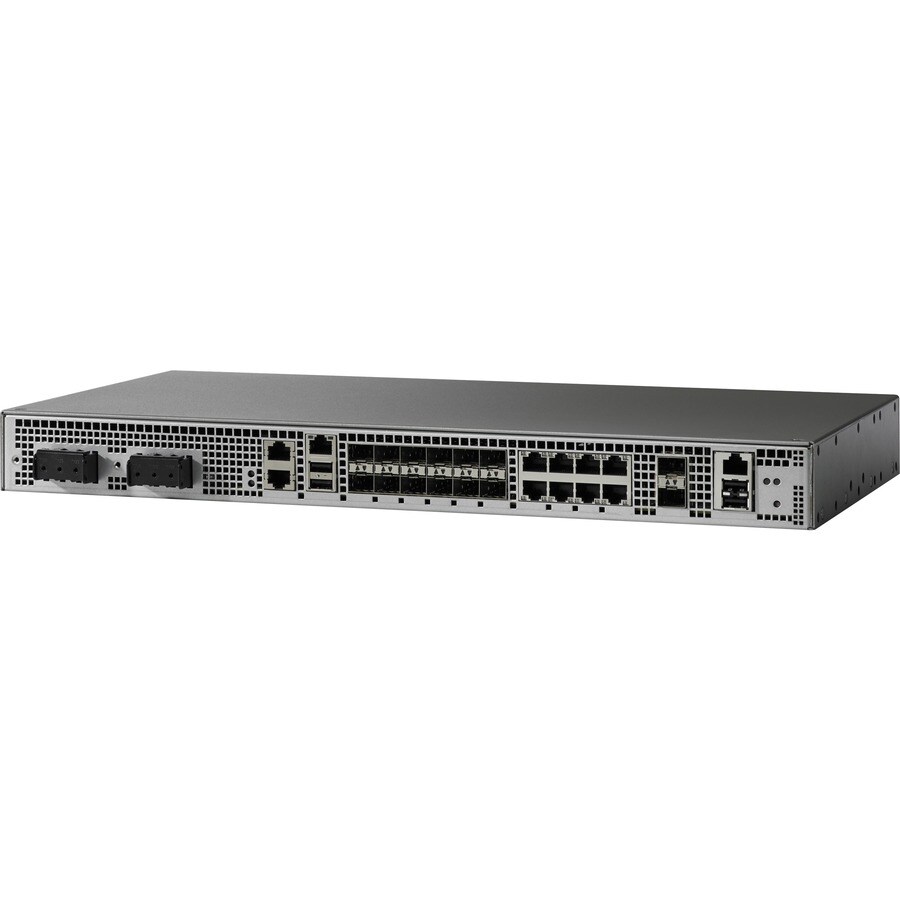

Cisco ASR920 Series 2GE and 4-10GE - AC model

Cisco® ASR 920 Series Aggregation Services Routers are full-featured converged access platforms designed for the cost-effective delivery of wireline and wireless services. They are temperature hardened, high-throughput, small form factor, low-power-consumption routers optimized for mobile backhaul, residential, and business service applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer. Designed around key Carrier Ethernet features that simplify network operation, the Cisco ASR 920 Series enables premium services with enhanced service-level agreement (SLA) capabilities. An optional "pay-as-you-grow" feature and service activation model gives service providers a flexible, cost-effective solution.
  • Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity
  • Rack-mountable feature for convenient and safe installation of the router
  • Features management port for a reliable networking
  • With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails

Technical Specifications

Management & Protocols
Security Features
    • ACL
    • L2VPN
    • L3VPN
Memory
Memory TechnologyDRAM
Miscellaneous
Certifications & Standards
    • IEEE1588-2008

    Safety:

    • UL 60950-1, 2nd edition
    • CAN/CSA C22.2 No. 60950-1-07 2nd edition
    • IEC 60950-1, 2nd edition
    • EN 60950-1, 2nd edition
    • AS/NZS 60950.1:2003

    EMC:

    • FCC CFR47 Part 15 Class A
    • EN55022, class A
    • CISPR22, class A
    • ICES-003, class A
    • EN 300 386, class A
    • VCCI, class A
    • KN22, class A
    • EN61000-3-2 to EN61000-3-3

    Immunity Compliance:

    • EN 300 386
    • EN 61000-6-1
    • EN 50082-1
    • CISPR24
    • EN 55024
    • KN 24
    • EN 50121-4
    • EN/KN 61000-4-2 to EN/KN 61000-4-6
    • EN/KN 61000-4-8
    • EN/KN 61000-4-11
    NEBS:
    • GR-63-CORE Issue 4
    • GR-1089-CORE Issue 6
    • SR-3580 NEBS Level 4
    ETSI:
    • ETS/EN 300 119 Part 4
    • ETS/EN 300 019
    • ETS/EN 300 753
Physical Characteristics
Compatible Rack Unit1U
I/O Expansions
Expansion Slot TypeSFP+
SFP
Total Number of Expansion Slots8.0
Network & Communication
Network Technology10GBase-X
10/100/1000Base-T
1000Base-X
Ethernet Technology10 Gigabit Ethernet
Power Description
Input Voltage120 V AC
230 V AC
Power SourcePower Supply
PoE (RJ-45) PortNo
Redundant Power Supply SupportedYes
Interfaces/Ports
Token Ring PortNo
USBYes
Number of Network (RJ-45) Ports2
PowerlineNo
Management PortYes
Total Number of Ports2
Serial V.35 InterfaceNo
General Information
Product TypeRouter
Manufacturer Part NumberASR-920-4SZ-A
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelASR-920-4SZ-A
Product NameASR-920-4SZ-A Router
Product SeriesASR 920
Brand NameCisco

Price Trend

Current Price
AUD 10,688.58
