AWMS-2-D13-F DUAL DYNAMIC MONITOR ARM SO
AWMS-2-D13-F DUAL DYNAMIC MONITOR ARM SO
Product Overview
Atdec Mounting Arm for Monitor, Display - White - Height Adjustable - 2 Display(s) Supported - 68.6 cm (27") Screen Support - 9 kg Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible
Dynamic motion for monitors to ~27"

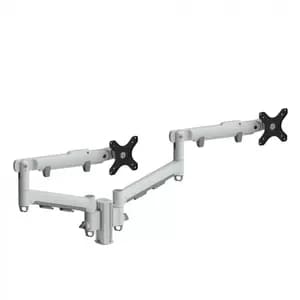

This has two monitor arms attached to a small post. Each arm has three points of articulation and allows hand rotation of monitors landscape-to-portrait.
The monitor arms are spring-assisted and can be installed in any of the four post channels, and additional monitor arms can be added later. The spring-assisted arm design provides excellent ergonomic support and display adjustment from a seated position. Perfect for activity based workplaces, sit-to-stand workstations, and shared environments.
Choose me for:
- Dual monitors to approx. 27"
- Independent positioning of each monitor
Specifications:
- Suits most popular monitors to:
- 9kg (20lb) flat displays
- 6kg (13.5lb) curved displays
- Built-in:
- Optional 180° rotation limiter
- Generous concealed cable management
- Quick display release
- Tool-free adjustments
- Light, durable, & recyclable aluminium construction
- Upgradable & reconfigurable
- Black, silver, or white finishes
- 10 year warranty
- Dual display mounting solution to suit most monitors up to 27".
- Upgradeable with AWM-HS Slider accessory for greater flexibility of display positioning. Refer to AWM-HS Technical Specification for details.
- Adjustable counterbalance to suit a wide range of monitors.
- Tension gauge to make installation of multiple arms faster.
- Integrated 180° rotation limiter to prevent interference with desk mounted panels and dividers.
- Generous cable management guides cables discreetly down the arm to the work surface.
Technical Specifications
| Application/Usage | Workstation |
| Post Mountable | |
| Desk | |
| Package Contents |
|
| Device Supported | Monitor |
| Display | |
| Features | Adjustable Tilt |
| Articulating | |
| Cable Management | |
| Durable | |
| Ergonomic | |
| Flexible | |
| Landscape/Portrait Mounting | |
| Pan | |
| Quick Release Mechanism | |
| Recyclable | |
| Rotate | |
| -25°/45° Tilt | |
| 180° Rotation | |
| 360° Rotation | |
| Adjustable | |
| Spring Loaded Mechanism | |
| Spring Tension Gauge | |
| Tool-less Adjustment | |
| Vertical Adjustment | |
| Maximum Load Capacity | 9 kg |
| Maximum Screen Size Supported | 68.6 cm (27") |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 6 kg |
| Height Adjustable | Yes |
| Product Type | Mounting Arm |
| Manufacturer Part Number | AWMS-2-D13-F-W-K |
| Manufacturer Website Address | http://www.atdec.com.au |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Dual Dynamic Monitor Arms on 135 Post |
| Brand Name | Atdec |
| Finishing | White |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100 |
| 75 x 75 | |
| Product Color | White |
| Product Material | Plastic |
| Aluminium |
