DYNAMIC ARM WALL MOUNT BLACK
DYNAMIC ARM WALL MOUNT BLACK
Product Overview
Atdec Mounting Arm for Monitor, Flat Panel Display, Curved Screen Display - Black - Height Adjustable - 1 Display(s) Supported - 75 x 75, 100 x 100 - VESA Mount Compatible

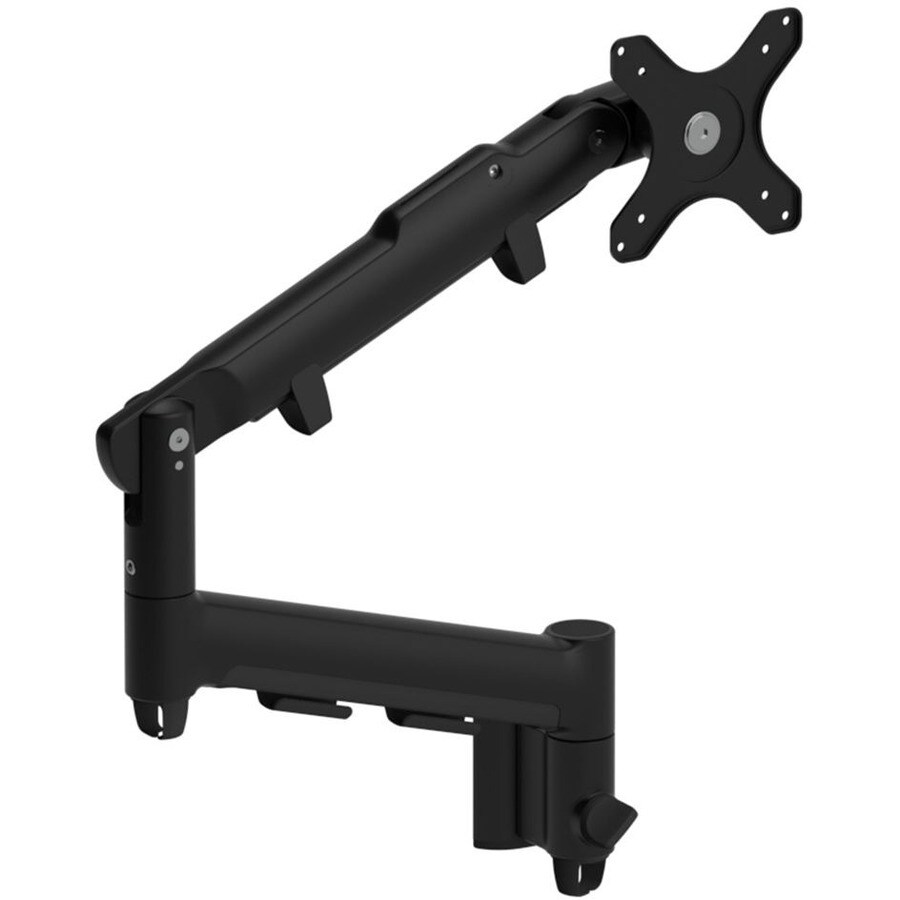

The Atdec AWMS-DW6 is a single spring-assisted monitor arm attached to a 2.4" wall channel. This solution is part of the Atdec modular range and consists of the following individual components:
1 x AWM-AD dynamic arm, 1 x AWM-LC channel clamp and 1 x AWM-W6 wall channel.
Spring-assisted arms provide the ultimate in ergonomic support and allow the display to be adjusted effortlessly from a seated position. Perfect for Activity-based workplaces, public display, point of sale (POS), medical and shared environments. Touch screen compatible.
Upgrades: The display mounting head can be replaced with the Atdec notebook holder AWM-HN (sold separately).
- Flat screen monitors: maximum load up to 20lb
- Curved screen monitors: maximum load up to 13.5lb
- Three points of articulation enable spring assisted full-motion adjustment
- VESA mounting hole pattern: 75x75 and 100x100
- Single stud design for easy installation
- Masonry or timber stud mounting options
- Display tilt, pan and landscape to portrait rotation
- Spring tension visual gauge and quick release/attachment mounting head to assist with multiple installations
- Made of durable and easy to recycle steel and aluminum
- Designed for extended use and easy disassembly at the end of the products life
- 10 year warranty
Technical Specifications
Application/Usage | Point of Sale (POS) |
Wall | |
Masonry | |
Medical | |
Compatibility | Atdec AC-AP-2010 Adaptor Plate |
Device Supported | Monitor |
Curved Screen Display | |
Flat Panel Display | |
Features | 180° Rotation |
Recyclable | |
Spring Arm | |
360° Rotation | |
Spring Tension Gauge | |
Tilt | |
Vertical Adjustment | |
Adjustable | |
Articulating | |
Cable Management | |
Durable | |
Ergonomic | |
Full Motion | |
Horizontal Adjustment | |
Pan | |
Quick Release Mechanism | |
Number of Displays Supported | 1 |
Height Adjustable | Yes |
Product Type | Mounting Arm |
Manufacturer Part Number | AWMS-DW6-B |
Manufacturer Website Address | http://www.atdec.com.au |
Manufacturer | Atdec Pty Ltd |
Product Name | Dynamic Monitor Arm on Wall Mount |
Brand Name | Atdec |
VESA Mount Compatible | Yes |
Mounting Pattern | 75 x 75 |
100 x 100 | |
Product Color | Black |
Product Material | Steel |
Aluminium |
