APC BACK-UPS CS 500VA 230V USB/SERIAL
APC BACK-UPS CS 500VA 230V USB/SERIAL
Product Overview
APC by Schneider Electric Back-UPS BK500EI Standby UPS - 500 VA/300 W - 2.40 Minute Stand-by - 220 V AC Input - 230 V AC Output - 1 x IEC 60320 C13, 2 x IEC 60320 C13, 3 x IEC 60320 C13, 1 x IEC 60320 C13, 2, 3 - USB
APC Back-UPS CS 500VA provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
- Protects computers and other electronic devices from harm caused by short power outages
- Keep your sensitive devices powered with a backup of up to 2.40 minute at full load
- 500 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
Technical Specifications
| Status Indicators |
|
| USB | Yes |
| Thermal Dissipation | 24 BTU/h |
| Maximum Operating Temperature | 45°C |
| Alarm | Low Battery |
| On Battery | |
| Overload |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 13.90 Minute |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Dataline Protection | RJ-45 |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |

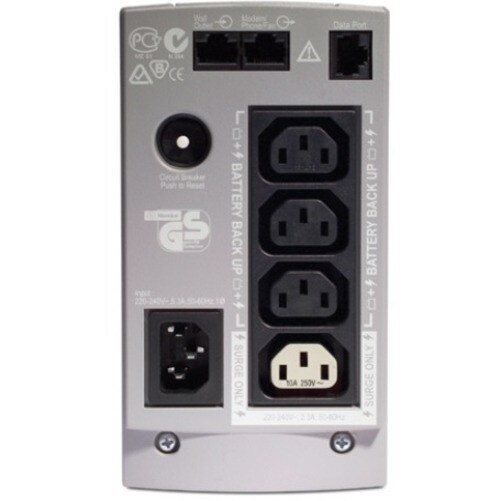

| Receptacle Detail | 3 x IEC 60320 C13 |
| 2 x IEC 60320 C13 | |
| 1 x IEC 60320 C13 | |
| 2 | |
| 3 |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 300 J |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Weight (Approximate) | 6.30 kg |
| Height | 165.1 mm |
| Width | 91.4 mm |
| Depth | 284.5 mm |
| Product Color | Beige |
| Color Family | Beige |
| Product Type | Standby UPS |
| Manufacturer Part Number | BK500EI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | BK500EI |
| Product Name | Back-UPS CS 500VA |
| Product Line | Back-UPS |
| Product Series | CS |
| Brand Name | APC by Schneider Electric |
