BRIC-LCD 1000VA / 600W UPS 2 YRS WTY
BRIC-LCD 1000VA / 600W UPS 2 YRS WTY
Product Overview

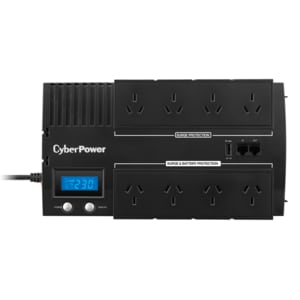

CyberPower BRICs LCD BR1000ELCD Line-interactive UPS - 1 kVA/600 W - Wall Mountable - 8 Hour Recharge - 1 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x AU, 1 x USB - Serial Port - USB - 4 x Battery/Surge Outlet
The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The featured LCD status monitor provides all critical power status you should know. The include PowerPanel® Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount position to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 1 minute at full load
- 1 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
Technical Specifications
| Status Indicators |
|
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Alarm | Overload |
| Low Battery | |
| Battery Mode | |
| UPS Fault |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 6 Minute |
| Backup/Run Time (Full Load) | 1 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Protection Type | Spike |
| Surge | |
| RFI | |
| EMI | |
| Receptacle Type | AU |
| USB | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 1 x USB |
| 8 x AU |
| Thermal Dissipation | 102 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 3 km |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Weight (Approximate) | 6.50 kg |
| Height | 118 mm |
| Width | 166 mm |
| Depth | 288 mm |
| Product Color | Black |
| Color Family | Black |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | BR1000ELCD |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | BR1000ELCD |
| Product Name | BRICs LCD BR1000ELCD 1000VA Wall Mountable UPS |
| Product Line | BRICs LCD |
| Brand Name | CyberPower |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 150 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 170 V AC - 290 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
