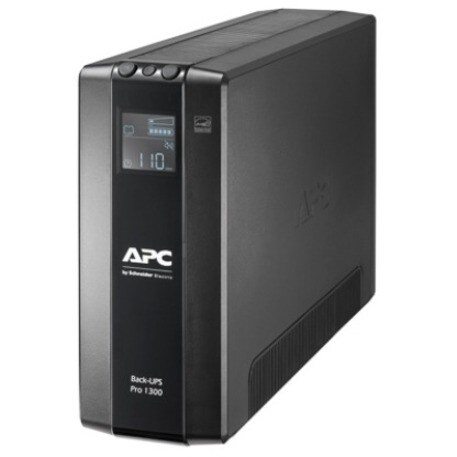

Back UPS Pro BR 1300VA. 8 Outlets. AVR.
Back UPS Pro BR 1300VA. 8 Outlets. AVR.
Product Overview
APC by Schneider Electric Back-UPS Pro BR1300MI Line-interactive UPS - 1.30 kVA/780 W - Tower - AVR - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13 - Stepped Approximated Sine Wave - 6 x Battery/Surge Outlet
APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.
Power and Protect
Battery backup & surge protector outlets
Keep valuable devices running when the power is outside of safe levels
Sinewave power output
Ensures power quality without distortion or power drop during an outage. Ideal for advanced workstations, high end PCs, multimedia devices and home storage
2 USB charging ports (Type C + Type A)
Fast charge mobile devices such as smartphones and tablets
AVR with boost and trim
Instantly corrects low/high voltage fluctuations and is Active Power Factor Correction (PFC) compatible
1Gb network protection
Safeguards your equipment and valuable files from "back door" surges traveling along data lines without sacrificing internet speed
User replaceable batteries
Allows you to quickly replace batteries LCD interface Quick and easy to read, provides information about the utility and UPS conditions
Powerchute personal edition
Easy-to-use auto-shutdown software with power and energy management features
3-year warranty
Three-year limited warranty with a lifetime Equipment Protection Policy up to €150,00
- Experience higher efficiency with lower energy cost
- 1.30 kVA load capacity - work without any interruption during power outages
- 780 W load capacity - backup power for your valuable electronics
Technical Specifications
Controls/Indicators
Status Indicators |
|
Interfaces/Ports
Network (RJ-45) | Yes |
USB (HID Compliant) Port | Yes |
Battery Information
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Characteristics | Valve-regulated |
Replaceable Battery | Yes |
Environmental Conditions
Sound Emission | 45 dB |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 15 km |
Technical Information
Application/Usage | Workstation |
Home | |
SOHO Office | |
Electronic Equipment | |
Desktop Computer | |
Business | |
Multimedia Device | |
Dataline Protection | RJ-45 |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC 60320 C13 |
AVR | Yes |
Number of Battery & Surge Outlets | 6 |
Number of Surge-only Outlets | 2 |
Receptacle Detail | 8 x IEC 60320 C13 |
Management
Alarm | Overload |
Low Battery | |
On Battery | |
Replace Battery |
Physical Characteristics
Weight (Approximate) | 10.20 kg |
Height | 100 mm |
Width | 250 mm |
Depth | 382 mm |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Waveform Type | Stepped Approximated Sine Wave |
Input Voltage Range | 176 V AC - 294 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 1.30 kVA |
Load Capacity (Watt) | 780 W |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | BR1300MI |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Model | BR1300MI |
Product Name | Back-UPS Pro BR1300MI 1300VA Tower UPS |
Product Line | Back-UPS Pro |
Product Series | BR |
Brand Name | APC by Schneider Electric |
