Back UPS Pro BR 650VA. 6 Outlets. AVR. L
Back UPS Pro BR 650VA. 6 Outlets. AVR. L
Product Overview

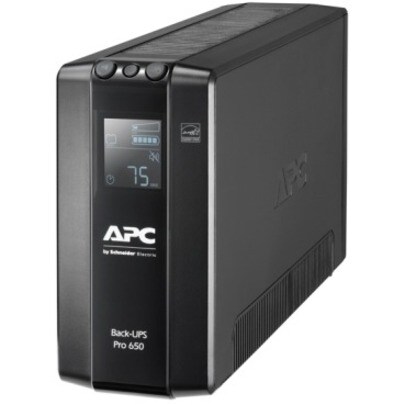

APC by Schneider Electric Back-UPS Pro BR650MI Line-interactive UPS - 650 VA/390 W - Tower - AVR - 12 Hour Recharge - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Stepped Sine Wave - 6 x Battery/Surge Outlet
APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.
Power and Protect
Battery backup & surge protector outlets
Keep valuable devices running when the power is outside of safe levels
Sinewave power output
Ensures power quality without distortion or power drop during an outage. Ideal for advanced workstations, high end PCs, multimedia devices and home storage
2 USB charging ports (Type C + Type A)
Fast charge mobile devices such as smartphones and tablets
AVR with boost and trim
Instantly corrects low/high voltage fluctuations and is Active Power Factor Correction (PFC) compatible
1Gb network protection
Safeguards your equipment and valuable files from "back door" surges traveling along data lines without sacrificing internet speed
User replaceable batteries
Allows you to quickly replace batteries LCD interface Quick and easy to read, provides information about the utility and UPS conditions
Powerchute personal edition
Easy-to-use auto-shutdown software with power and energy management features
3-year warranty
Three-year limited warranty with a lifetime Equipment Protection Policy up to €150,00
- Works adequately in situations where the supply is prone to sags and surges
- 650 VA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 390 W load capacity
Technical Specifications
Controls/Indicators
Status Indicators |
|
Interfaces/Ports
Network (RJ-45) | Yes |
USB (HID Compliant) Port | Yes |
Environmental Conditions
Sound Emission | 45 dB |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Management
Alarm | Low Battery |
On Battery | |
Overload | |
Replace Battery |
Physical Characteristics
Weight (Approximate) | 6.40 kg |
Height | 190 mm |
Width | 91 mm |
Depth | 310 mm |
Technical Information
Application/Usage | SOHO Office |
Workstation | |
Multimedia Device | |
Home | |
Electronic Equipment | |
Desktop Computer | |
Business | |
Dataline Protection | RJ-45 |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC 60320 C13 |
AVR | Yes |
Number of Battery & Surge Outlets | 6 |
Receptacle Detail | 6 x IEC 60320 C13 |
Battery Information
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Characteristics | Valve-regulated |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 12 Hour |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Waveform Type | Stepped Sine Wave |
Input Voltage Range | 176 V AC - 294 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 650 VA |
Load Capacity (Watt) | 390 W |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | BR650MI |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Model | BR650MI |
Product Name | Back-UPS Pro BR650MI 650VA Tower UPS |
Product Line | Back-UPS Pro |
Product Series | BR |
Brand Name | APC by Schneider Electric |
Price Trend
Current Price
AUD 349.99
