EASY UPS 1PH BVS 500 VA AVR 230 V AUSTRA
EASY UPS 1PH BVS 500 VA AVR 230 V AUSTRA
Product Overview

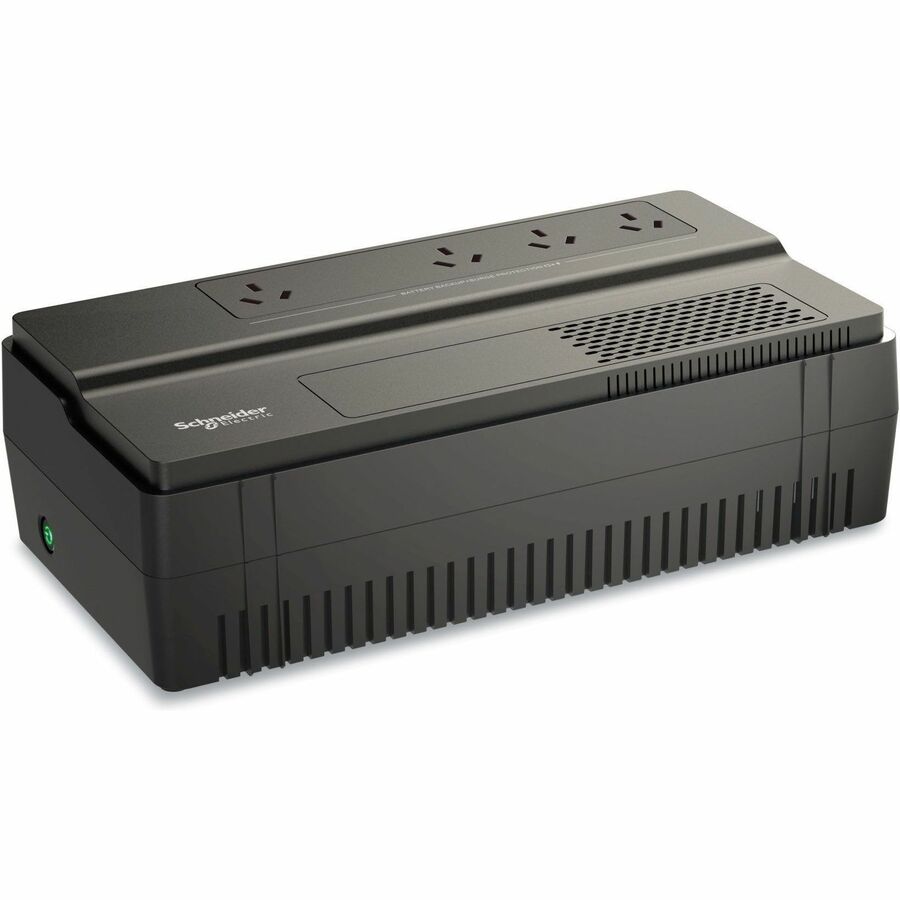

Schneider Electric Easy UPS Standby UPS - 500 VA - Floor/Wall Mountable - AVR - 8 Hour Recharge - 4 x AS3112 - Single Phase - Sine Wave - LED Display
This Schneider Electric Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 500VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 156 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty.
- Compact size acommodates installation in a variety of environments
- AVR corrects voltage variations to provide reliable power
- LED display provides easy-to-read status of unit and utility power conditions
- Cold start function allows you to reboot the UPS even when utility power is unavailable
Technical Specifications
| Status Indicators | LED |
| Display | LED |
| Alarm | Overload |
| Low Battery |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 1.97 km |
| Surge Energy Rating | 156 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 500 VA |
| Product Type | Standby UPS |
| Manufacturer Part Number | BVS500IAZ |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 / Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS BVS 500VA Floor/Wall Mountable UPS |
| Product Line | Easy UPS |
| Product Series | BVS |
| Brand Name | Schneider Electric |
| Weight (Approximate) | 3.90 kg |
| Height | 92.5 mm |
| Width | 160.5 mm |
| Depth | 305 mm |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| China Restriction of Hazardous Substances (China RoHS) |
| Application/Usage | Office |
| Home | |
| Features | Cold Start Function |
| Cord Length | 1.52 m |
| Phase | Single Phase |
| Receptacle Type | AS3112 |
| AVR | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 4 x AS3112 |
