Product Overview

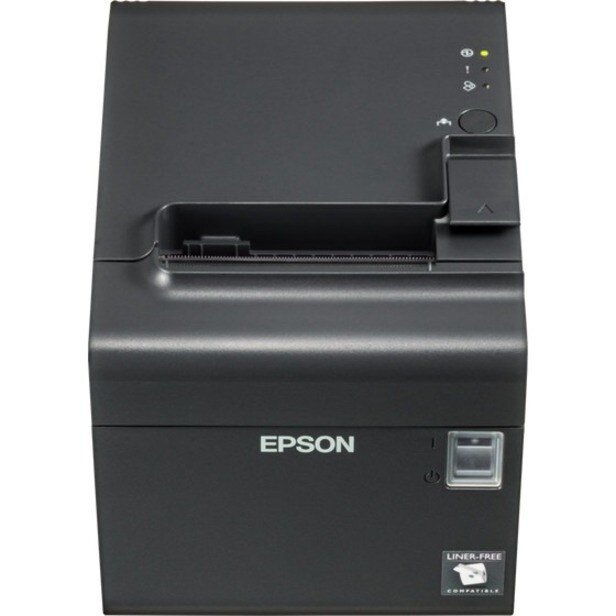

TM-L90LF (682) BLK USB Type B Drawer Partial Cut PS-180

As the TM-L90LF prints both liner-free labels and receipts in order to improve the user's operational efficiency and total cost of ownership (TCO). As the printer works with adhesive-backed media, users are able to accurately label food and drink orders - thereby increasing customer satisfaction and user accuracy.

Order processing speed

With print speeds of up to 170mm/sec, the potential benefits to the user are clear: fast order (and checkout) processing, faster drive-through services and improved customer satisfaction.

Built-in taken sensor

The next label prints automatically as the printed one is taken.

Flexible installation

Users can position the printer in the most convenient spot, thanks to a choice of vertical, horizontal or wall-mounted (using optional bracket) installation.

Saves paper

The TM-L90LF features improved paper reduction functionality that includes back feed capability, line feed adjustment and a smaller sized font. It can be set up to cut through adhesive areas, which saves paper. To further reduce paper consumption, the automatic top margin reduction function prints the top of the next receipt before cutting the current one when printing continues after auto cutting. It supports 1.5-inch, 2-inch or 3-inch media widths.

  • Built-in taken sensor Automatic next label printing
  • Media flexibility 40, 58 and 80mm media widths
  • Speed Print speeds of up to 170mm/sec
  • Paper-saving Improved paper reduction function
  • Easy installation Three mounting positions

Technical Specifications

Interfaces/Ports
USBYes
Serial PortYes
USB HostYes
Miscellaneous
Platform SupportedPC
Country of OriginChina
Noise Level52 dB
Cutter
Cutting MethodAutomatic
CutterYes
Cutter Life1000000 Cuts
Cut TypePartial Cut
Technical Information
Application/UsageDesktop
Recommended UseLabel Print
Print Head Life75KM
InstallationHorizontal/Vertical
Print Color CapabilityMonochrome
Mean Time Between Failures (MTBF)41.1 Year
Mean Cycles Between Failures (MCBF)35000000
Character Sets128 x 11 Graphic
37 International
ANK
95 Alphanumeric
Maximum Print Resolution (dpi)203 x 203
Physical Characteristics
Height203 mm
Width140 mm
Depth148 mm
Product ColorDark Grey
Color FamilyGrey
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberC31C412682
Manufacturer Website Addresshttp://www.epson.com.au
ManufacturerEpson Corporation
Product ModelTM-L90LF (682)
Product NameLiner-Free Thermal Label Printer
Product SeriesTM-L90
Brand NameEpson
Media Types & Handling
Maximum Roll Diameter102 mm
Media TypeBlack Mark
Label
Liner-free Label
Receipt
Media SensorBlack Mark Sensor
Paper End Sensor
Cover Open Sensor
Maximum Label Width80 mm
