TM-T88VII-632 ETHERNET PUSB NO PSU

TM-T88VII-632 ETHERNET PUSB NO PSU

TM-T88VII-632 ETHERNET PUSB NO PSU

Product Overview

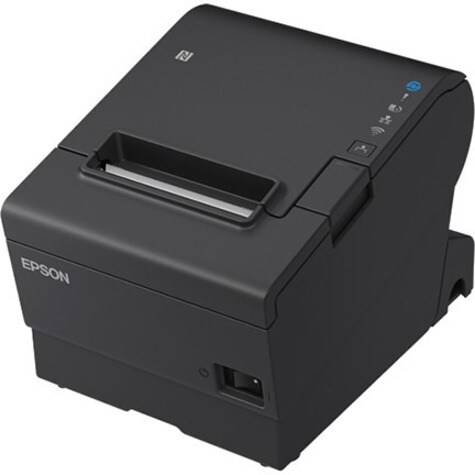

Epson TM-T88VII -612 Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - USB Host - With Cutter - Black - 500 mm/s Mono - 180 dpi - 80 mm Label Width - ESC/POS, ePOS Emulation - Automatic Cutting - For PC, Android, iOS, Mac, SPARC

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

KEY FEATURES & BENEFITS

  • Ultra-fast transaction times - industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
  • Reliability you can count on - 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
  • Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
  • Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
  • Secure wireless connection - supports the latest Wi-Fi® security standard (WPA3)
  • Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
  • POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
  • Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
  • Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
  • Backwards compatible - fully compatible with the existing T88V and T88VI software and same footprint
  • Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • A smart and inexpensive solution to print temporary documents
  • Ideal for point-of-sale transactions for quick receipt printing

Technical Specifications

Software
Software Included

ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)

Fonts & Emulation
Language EmulationESC/POS
ePOS
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedData Matrix
UPC-A/E
QR Code
Aztec Code
Codabar
Code 128
Code 39
Code 93
Composite Symbology
GS1 DataBar Expanded
GS1 DataBar Limited
GS1 DataBar Omnidirectional
GS1 DataBar Truncated
GS1-128
Maxi Code
PDF417
Recommended UseReceipt Print
Connectivity TechnologyWired
FeaturesWater Resistant
Print Head Life200 km
Print Color CapabilityMonochrome
Mean Time Between Failures (MTBF)41.1 Year
Mean Cycles Between Failures (MCBF)70000000
Character Sets95 Alphanumeric
18 International
128 x 43 Graphic
Thai
Column Capacity80mm: 42/48/56 columns 58mm model: 30/36/40 columns
Optional ConnectivityNear Field Communication (NFC)
Wireless LAN
Serial (RS-232)
Parallel
Bluetooth
Maximum Print Resolution (dpi)180
Interfaces/Ports
USBYes
USB HostYes
Network & Communication
EthernetYes
Ethernet TechnologyEthernet
Cutter
Cutting MethodAutomatic
CutterYes
Cutter Life3000000 Cuts
Physical Characteristics
Weight (Approximate)1.60 kg
Height148 mm
Width145 mm
Depth195 mm
Product ColorBlack
Color FamilyBlack
Media Types & Handling
Media Thickness80 µm
Maximum Roll Diameter83 mm
Media TypeReceipt
Media SensorCover Open Sensor
Paper End Sensor
Paper Near End Sensor
Maximum Label Width80 mm
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberC31CJ57632
Manufacturer Website Addresshttp://www.epson.com.au
ManufacturerEpson Corporation
Product ModelTM-T88VII -612
Product NameTM-T88VII Single-station Thermal Receipt Printer
Product SeriesTM-T88VII
Brand NameEpson
Miscellaneous
Package Contents
  • TM-T88VII Single-station Thermal Receipt Printer
  • Thermal Roll Paper (starter roll for testing)
  • Power Switch Cover
  • Connector Cover
  • Bottom Cover for Connector Cover
  • Roll Paper Guide
  • Screws
  • Setup Guide
  • AC Adapter w/ AC Cord
  • CD (drivers, utilities and documentation)
Platform SupportedAndroid
SPARC
PC
iOS
Mac
Environmentally FriendlyYes
Noise Level52 dB
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
