TM-M30III-ETHERNET/USB BLACK

TM-M30III-ETHERNET/USB BLACK

TM-M30III-ETHERNET/USB BLACK

Product Overview

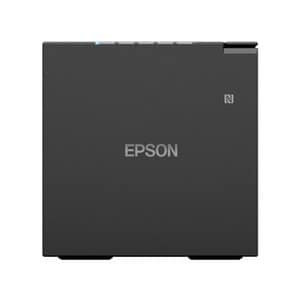

TM-m30III-202, Built-in USB, Ethernet, Black, Ultra Compact Thermal Receipt Printer (ePOS ready), Power Supply and cable included

Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.

Stylishly compact
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30III can be installed horizontally or vertically, that allows for even more positioning flexibility

Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB and Wi-Fi connectivity are available.

Adaptable
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.

Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.

Connectable
A single printer can be dynamically shared across multiple tablets with different interfaces.

  • Sleek, compact and stylish design
  • Flexible placement – place horizontally or vertically
  • NFC & Barcode pairing
  • ePOS print allows direct printing from ANY mobile device without the need to install or update drivers
  • Print speed of up to 300mm/sec
  • Paper width max 80mm
  • High-quality receipt printouts
  • IPX2 Rated enclosure is water resistant and easy to clean

Technical Specifications

Interfaces/Ports
USBYes
Technical Information
Application/UsageMobile POS
Barcode Symbology SupportedCode 93
Code 39
Code 128
GS1-128
ITF
Maxi Code
PDF417
QR Code
UCP-E
UPC-A
Codabar (NW-7)
Codabar
Aztec Code
EAN-13 (JAN13)
Data Matrix
Composite Symbology
GS1 DataBar
EAN-8 (JAN8)
Maximum Print Width79.50 mm (3.13")
Recommended UseReceipt Print
Connectivity TechnologyWired
FeaturesStatus Indicator
Compact
Paper Saving Mode
Power Saving Mode
Print TechnologyDirect Thermal
InstallationHorizontal/Vertical
Print Color CapabilityMonochrome
Mean Time Between Failures (MTBF)41.1 Year
Mean Cycles Between Failures (MCBF)65000000
Character Sets128 x 43 Graphic
95 Alphanumeric
18 International
Fonts IncludedKanji Font B: 20 x 24
Kanji Font A: 24 x 24
Font B: 10 x 24
Font C: 9 x 17
24 cpl
28 cpl (Japanese)
Font A: 12 x 24
64 cpl
57 cpl
48 cpl (default)
36 cpl (Korean)
Ingress Protection (IP) RatingIPX2
Maximum Print Resolution (dpi)203
Software
Operating System Supported
    • iOS
    • Android
    • Windows
    • Mac OS X
    • GNU (Linux)
Warranty
Limited Warranty URLhttps://www.netnest.com.au/Brochures/TM-M30III_Receipt_Printer_Spec_Sheet.pdf
Network & Communication
EthernetYes
Ethernet TechnologyFast Ethernet
Power Description
Power SourcePower Adapter
Maximum Power Consumption30.60 W
Cutter
Cutting MethodAutomatic
CutterYes
Cutter Life2200000 Cuts
Cut TypeFull/Partial Cut
Miscellaneous
Package Contents
  • TM-m30III Direct Thermal Printer
  • Power Supply PS-190 with AC Cable
  • Starter Receipt Paper Roll
  • Setup Guide
  • 58 mm Roll Paper Guide
Platform SupportediOS
PC
Android
Noise Level53 dB
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)1.30 kg
Height129 mm
Width127 mm
Depth128 mm
Product ColorBlack
Color FamilyBlack
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberC31CK50202
Manufacturer Website Addresshttp://www.epson.com.au
ManufacturerEpson Corporation
Product ModelTM-m30III
Product NameTM-m30III Direct Thermal Printer
Brand NameEpson
Media Types & Handling
Media Thickness80 µm
Maximum Roll Diameter83 mm
Media TypeReceipt
Roll Paper
Media SensorPaper Near End Sensor
Cover Open Sensor
Maximum Label Width79.50 mm
